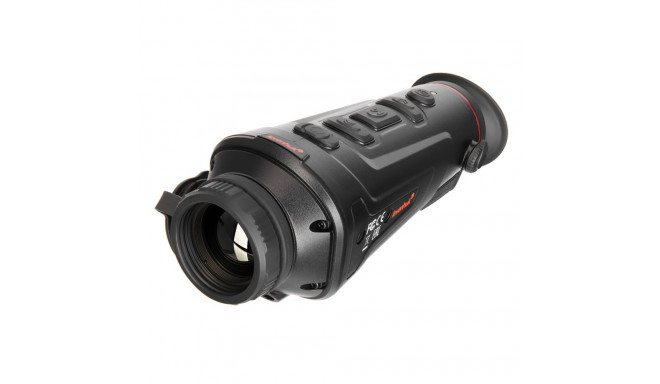

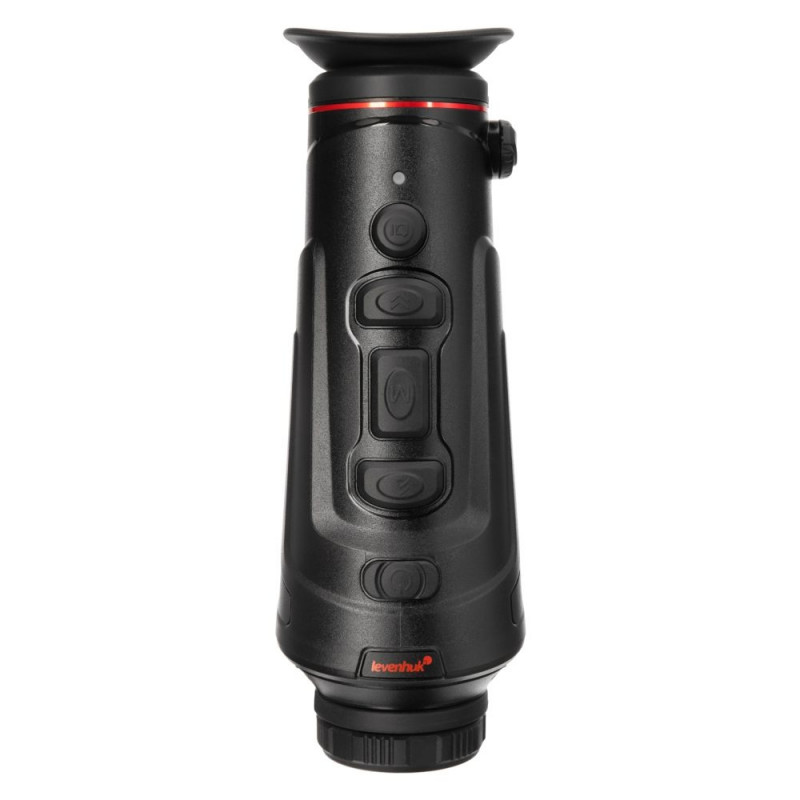

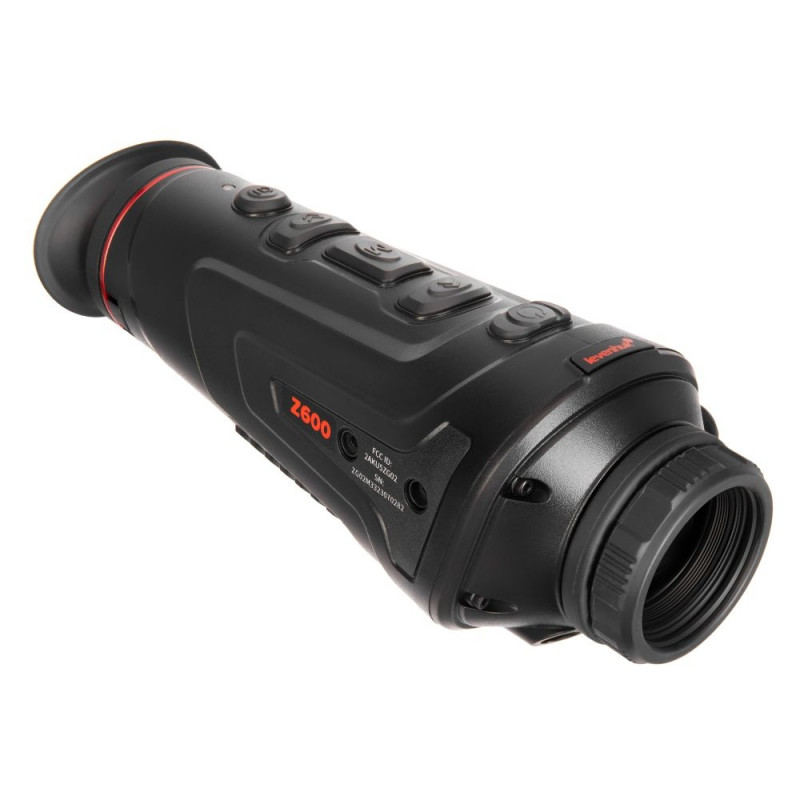

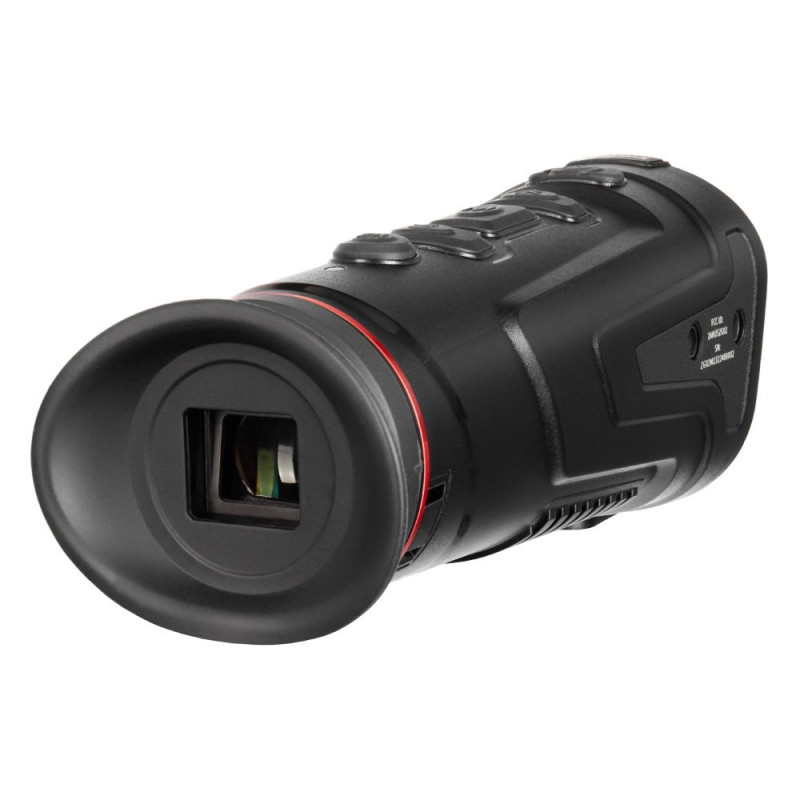

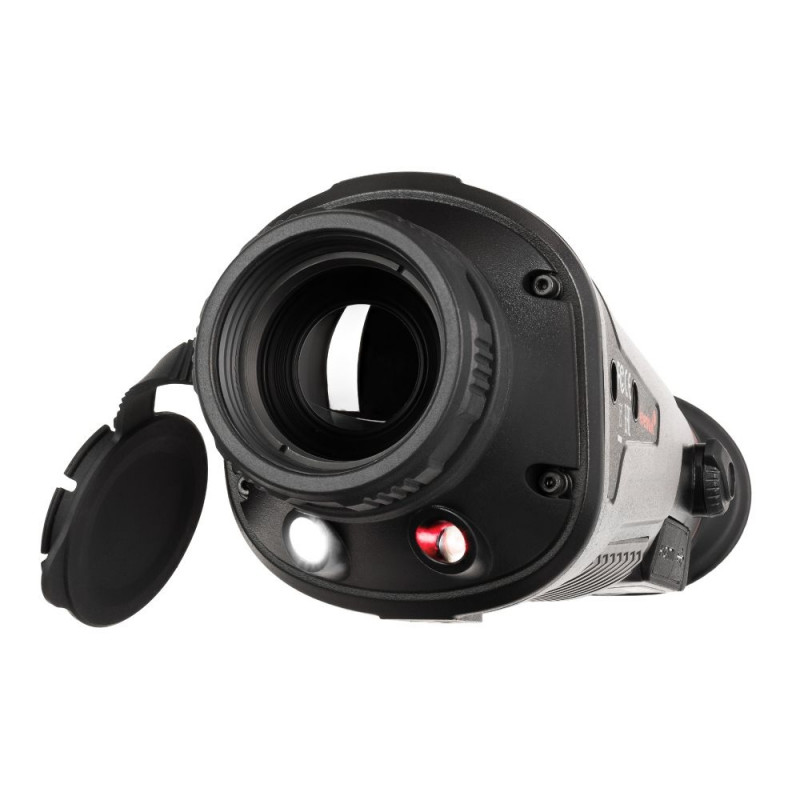

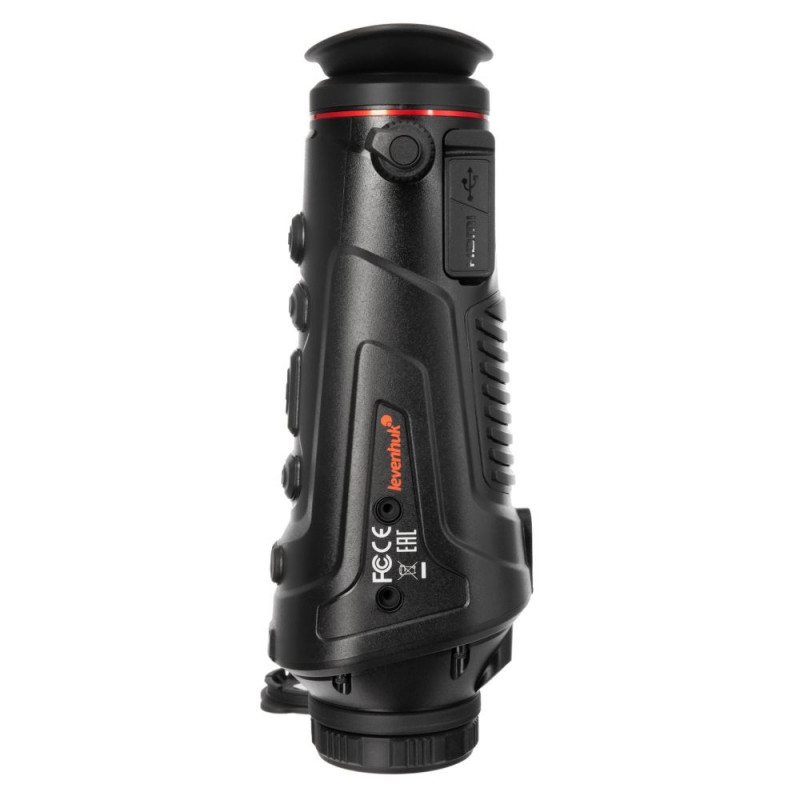

Levenhuk Fatum Z600 Thermo Vision Monocular

Main info

Product has been archived

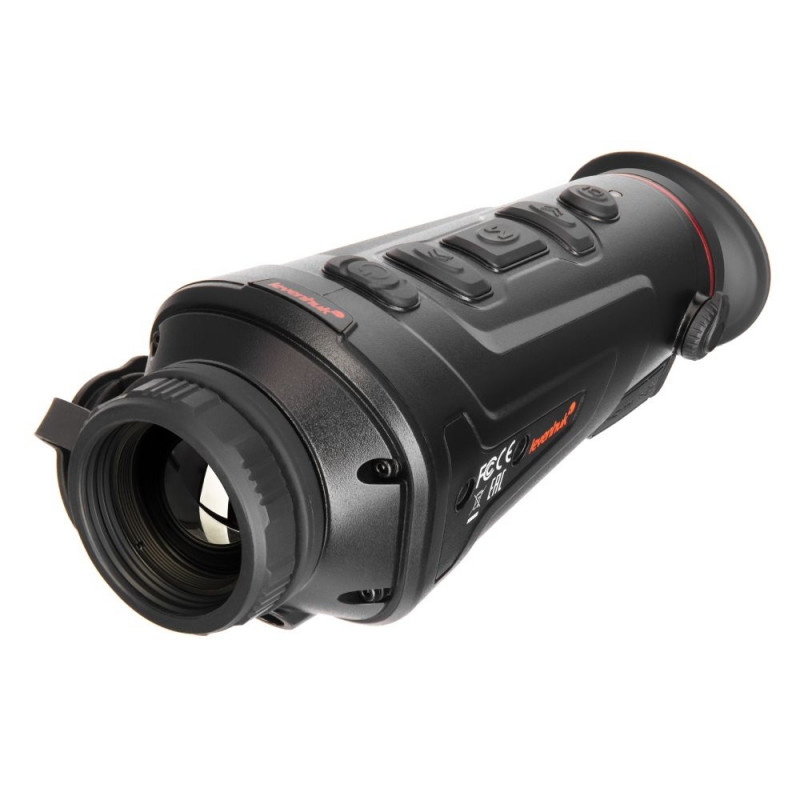

The Levenhuk Fatum Z600 Thermo Vision Monocular can detect live targets in total darkness quickly. It is suitable for outdoor use due to its impressive maximum operating range of 2400 meters (7870ft) – at this distance, you can detect an object the size of a car. It is possible to locate and detect small targets at 300–1000 meters (1000–3280ft), e.g., a hare, deer, wild boar, or human being. You can use the thermo vision monocular to observe non-living targets, for example, to check industrial facilities or machinery.

The thermo vision sensor resolution is 400x300pix, which provides sharp images. You can select the most suitable color palette – there are six options available. There is a picture-in-picture feature and hot spot detection. The optical magnification of the device is 2.3x, which can be further increased with digital magnification ranging 1–4x with smooth magnification adjustment across the entire range. The laser designator, which has a working range of 200 meters (660ft), can be used when observing in harsh environments.

The thermo vision monocular is equipped with a recorder that can capture both photos and video. It is recorded in the 16GB internal memory. The monocular also has a rangefinder, so you can quickly calculate the distance to the target.

You can connect the device to an iOS or Android smartphone via Wi-Fi to view images on the display in real time (via the TargetIR mobile app), and Bluetooth provides an option for remote control. You can also output the image to an external display via a microHDMI connection. The Type-C port is used to charge the device and transfer recorded data to a PC.

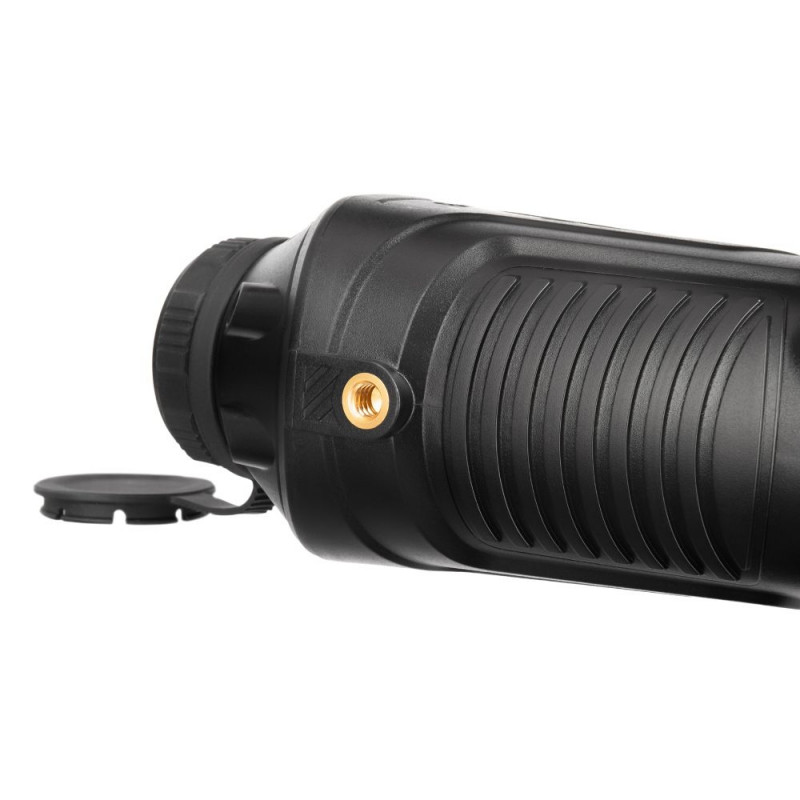

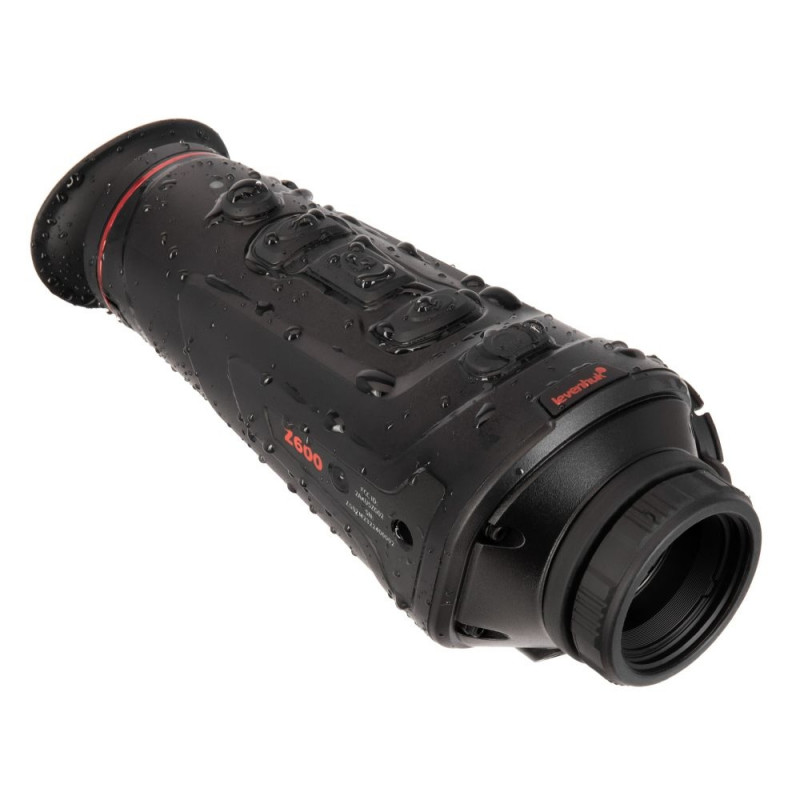

The device is powered by a pair of rechargeable batteries. Its total capacity is 6000 mAh, which is enough for 5 hours of continuous operation. It is worth mentioning the design features of the device. Firstly, it is fully waterproof, i.e., it won’t be affected by heavy rain or any accidental splashes. Secondly, it has a 1/4" mount for mounting on a tripod.

Key features:

  • 400x300pix sensor, optical and smooth digital magnification
  • Maximum detection range – 2400 meters (7870ft), laser designator
  • 6 color palettes, a picture-in-picture mode, hot spot detection
  • Option to use remote control (via Bluetooth)
  • Built-in Wi-Fi module for pairing with mobile devices (TargetIR app)
  • Recorder for capturing photos and videos (16 GB memory)
  • Rangefinder for calculating distances to the target
  • Powered by a rechargeable battery, 5 hours of continuous operation
  • Waterproof, a standard tripod mount
  • Lightweight – 500g

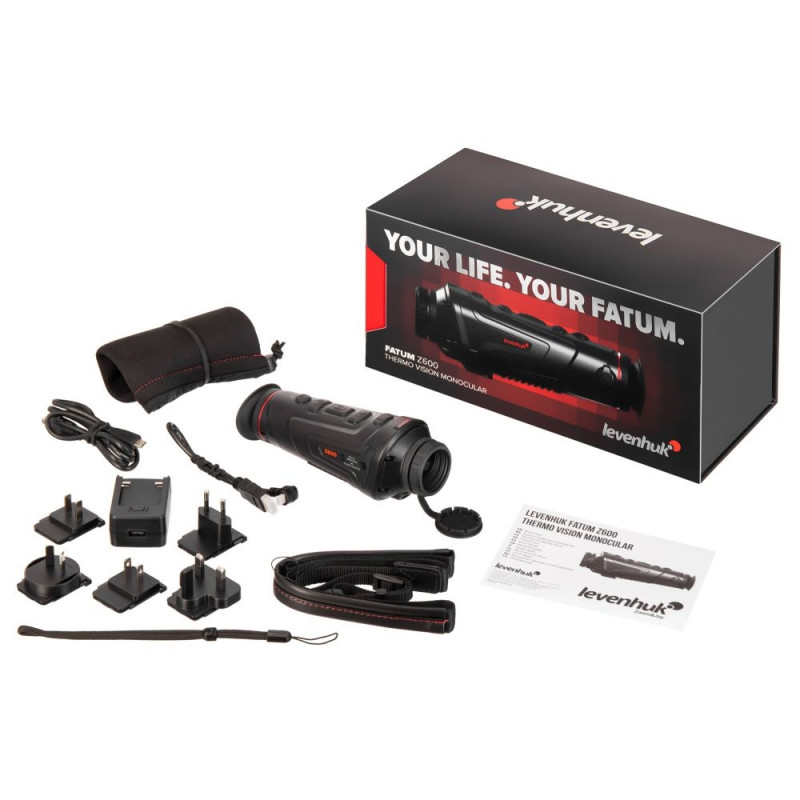

The kit includes:

  • Thermo vision monocular
  • HDMI cable
  • Type-C cable
  • Power adapter
  • Power adapter plugs – 5 pcs (UK, US, EU, AU, CH)

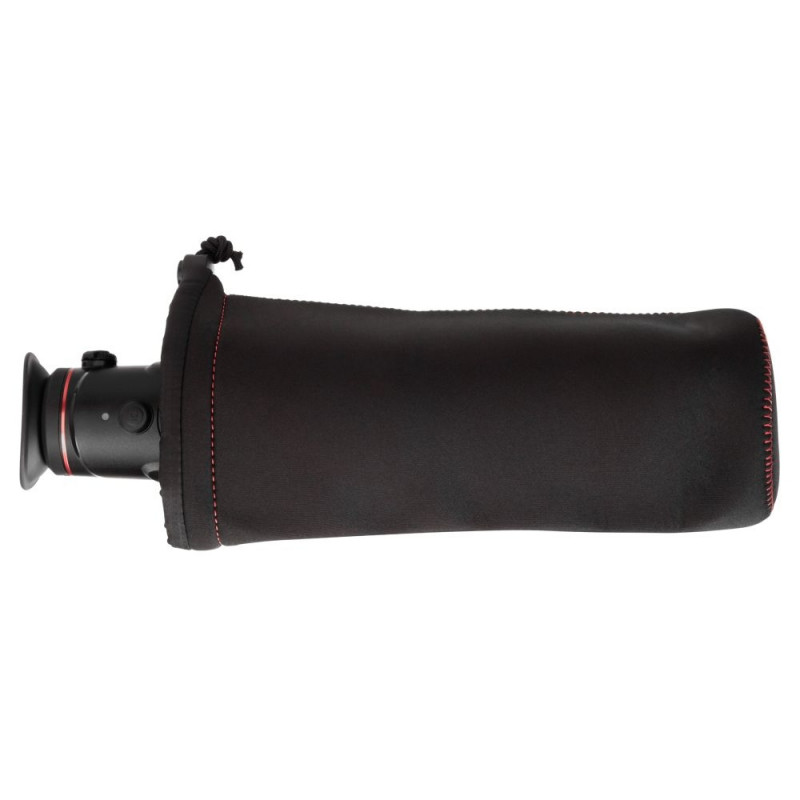

  • Pouch
  • Shoulder strap
  • Eyepiece protective cap
  • User manual and warranty card
Brand Levenhuk, Inc., USA
Warranty, years 2
EAN 5905555001920
Package size (LxWxH), cm 18.5x35.5x20
Shipping Weight, kg 1.83
Type of thermo vision device monocular
Detection range 2400m/7870ft (car, 2.3x2.3m/7.5x7.5ft), 1000m/3280ft (person, 1.8x0.5m/5.9x1.6ft), 620m/2030ft (boar, 0.9x0.7m/3x2.3ft), 820m/2690ft (deer, 1.5x0.5m/5x1.6ft)
Recognition range 1000m/3280ft (car, 2.3x2.3m/7.5x7.5ft), 500m/1640ft (person, 1.8x0.5m/5.9x1.6ft), 400m/1310ft (deer, 1.5x0.5m/5x1.6ft), 300m/1000ft (wild boar, 0.9x0.7m/3x2.3ft)
Microbolometer matrix uncooled, vanadium oxide
Resolution of microbolometer matrix, pix 400x300
Pixel size, μm 17
Spectral range, μm 8–14
Frame rate 50Hz
Temperature sensitivity (NETD), mK ≤30
Calibration automatic, shutter (shooter), manual
Adjustable parameters brightness (10 levels), contrast (10 levels)
Color palettes hot black, hot white, hot blue, hot green, customizable hot red, red iron
Laser designator +
Aperture ratio f/1.2
Optical magnification 2.3
Digital magnification 1–4x
Field of view (horizontal)x(vertical), ° 11.1х8.3
Focus manual
Eye relief, mm 10
Eyepiece diopter adjustment, diopters -4/+2
Display 0.4", FLCOS, brightness adjustable (10 levels)
Display resolution, pixels 1280x960
Power supply 18650 type non-removable battery, 3000mAh – 2 pcs.
Battery life, h 5
Waterproof IP66; full dust protection; protection against strong jets of water
Operating temperature range,°C -10 – 50
Operating humidity range, % 10 – 95
Ability to connect additional equipment iOS and Android mobile devices (TargetIR app), external screen
Bluetooth yes
Wi-Fi yes
Wi-Fi settings 2.4Hz, range – 15m (50ft) (in direct line of sight)
Interface connectors Type-C (USB 2.0) for data transfer and charging; HDMI for video output
Adaptable to a tripod yes
Pouch/case/bag in set pouch
Additional AUTO OFF function, hot spot detection, auto sleep mode, image enhancement function, picture-in-picture mode, shock-, vibration-, and drop proof (within 1m/3.3ft)
Objective germanium
Focal length, mm 35
Start-up time, s 2
Built-in rangefinder yes
Built-in recorder yes
Memory 16 GB

Kaugusmõõtjaga Yes
Pildi stabiliseerimine No
*Can be put into parcel-machine Истина
