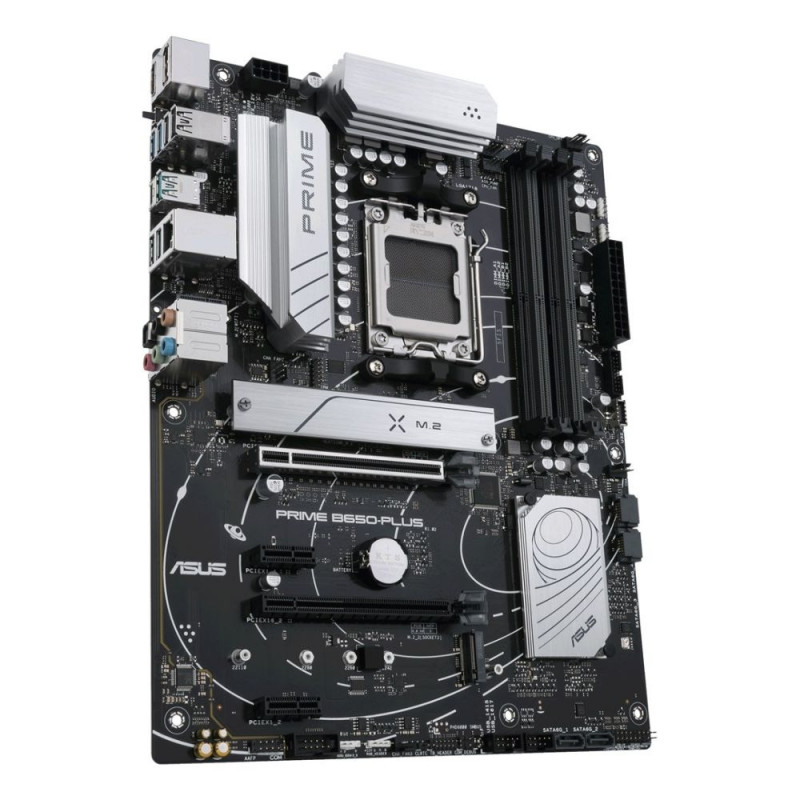

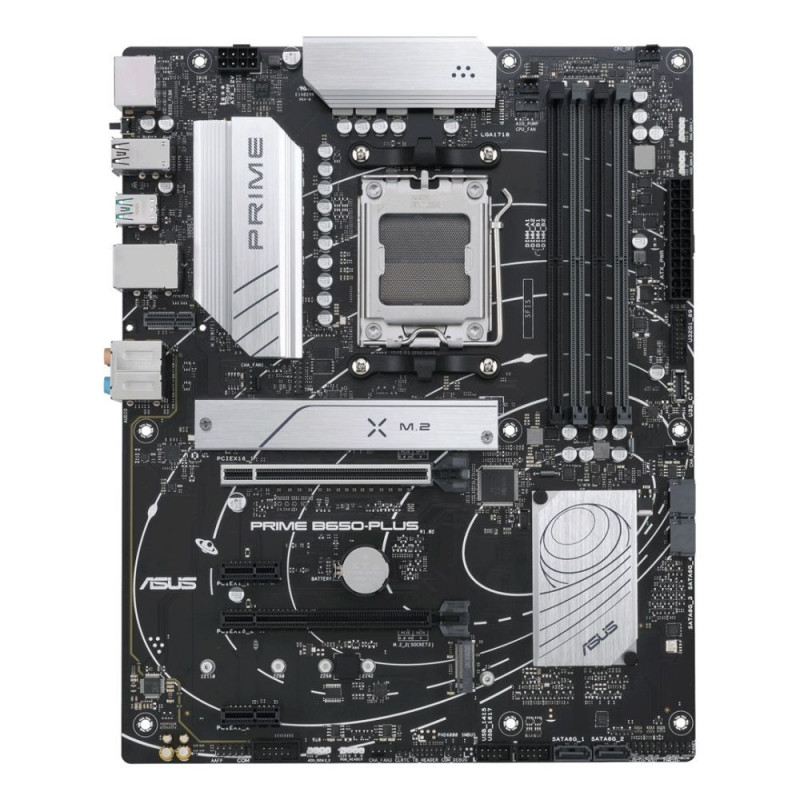

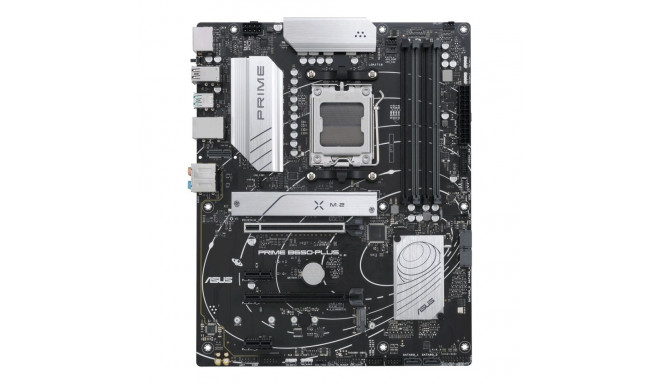

Asus mainboard Prime B650-PLUS AMD B650 AM5 ATX

Main info

Product has been archived


Audio output channels 7.1 channels
Thunderbolt headers 1
DisplayPort version 1.4
Motherboard chipset AMD B650
Supported storage drive types HDD & SSD
Number of M.2 (M) slots 2
Cables included SATA
Front panel audio connector Yes
EPS power connector (8-pin) Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Motherboard form factor ATX
Maximum internal memory 128 GB
Supported processor sockets Socket AM5
Package width 338 mm
RAID support Yes
ATX Power connector (24-pin) Yes
Package weight 1.35 kg
Package depth 373 mm
Motherboard chipset family AMD
DisplayPorts quantity 1
CPU fan connector Yes
Supported storage drive interfaces M.2, SATA III
HDMI ports quantity 1
Number of SATA III connectors 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 3
Number of chassis fan connectors 3
Ethernet LAN (RJ-45) ports 1
Number of COM connectors 1
BIOS type UEFI AMI
Product colour Multicolour
TPM connector Yes
User guide Yes
Unbuffered memory Yes
Package height 68 mm
USB 2.0 connectors 2
Power source type ATX
Parallel processing technology support Not supported
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 2.0 ports quantity 2
Ethernet interface type 2.5 Gigabit Ethernet
Width 305 mm
Memory channels Dual-channel
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
Supported memory types DDR5-SDRAM
Number of M.2 (E) slots 1
Back-to-BIOS button Yes
RGB LED pin header Yes
Memory slots type DIMM
PCI Express x16 (Gen 4.x) slots 2
HDMI version 2.1
Ethernet LAN Yes
12V power connector Yes
Processor socket Socket AM5
Line-in Yes
Microphone in Yes
Number of memory slots 4
Depth 244 mm
On-board graphics card No
PCI Express x4 (Gen 1.x) slots 2
Processor manufacturer AMD
Supported memory clock speed (max) 6400 MHz
Headphone outputs 1
Wi-Fi No
Warranty 36 (G)
S/PDIF out port Yes
ECC сompatibility ECC & Non-ECC
Compatible processor series AMD Ryzen 7000 Series
Windows operating systems supported Windows 11 x64
Supported memory clock speeds 5600
RAID levels 1
Warnings Avoid contact with liquids to prevent electronic damage.

Dimensions and weights

Package width
70 cm
Package height
275 cm
Package length
345 cm

Product codes

EAN
4711081923381
Manufacturer code
90MB1BS0-M0EAY0
