Home page » Computers & IT»Computer components»Mainboards»B550M DS3H AC AM4 4DDR4 HDMI/DVI M.2 USB3.2 mAT

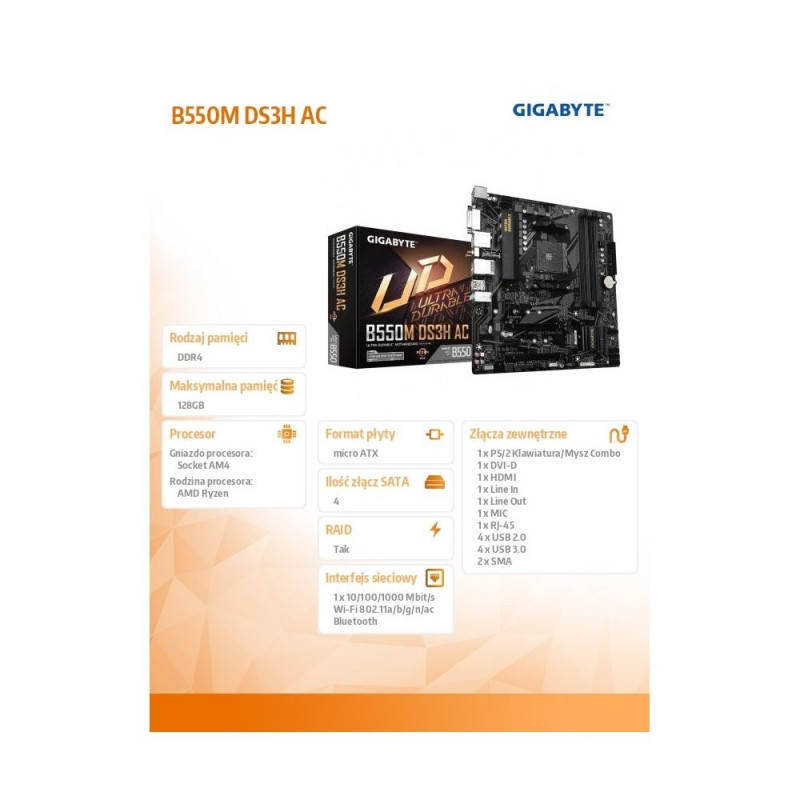

B550M DS3H AC AM4 4DDR4 HDMI/DVI M.2 USB3.2 mAT

117,99 €

Monthly payment starting from 3,53 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

AMD B550 Ultra Durable Motherboard with Pure Digital VRM, PCIe 4.0 x16, Dual PCIe 4.0/3.0 M.2, Intel Dual Band 802.11ac WIFI, Realtek GbE LAN, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q -FlashPlus

  • Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series
  • Dual Channel ECC/Non-ECC DDR4 Unbuffered Memory, 4 DIMMs
  • 5+3 phase pure digital VRM with low RDS(on) MOSFETs.
  • x16 slot ready for Ultra Durable PCIe 4.0
  • Dual ultra-fast NVMe PCIe 4.0/3.0 M.2 slots
  • Built-in Intel Dual Band 802.11ac & BT 4.2 Wireless with WIFI Antenna
  • High-quality audio capacitors and a noise shield ensure the highest sound quality
  • Realtek GbE LAN with bandwidth management
  • Support HDMI and DVI on the back
  • RGB FUSION 2.0 supports addressable LED strips and RGB LED strips
  • Smart Fan 5 includes multiple temperature sensors, hybrid fan connectors with FAN STOP function
  • Q-Flash Plus Update BIOS without installing CPU, memory or graphics card
  • Designing anti-sulphur resistors

CPU socket Socket AM4
Processor family AMD Ryzen
Integrated CPU No
Chipset manufacturer AMD
Chipset type AMD B550
Memory type DDR4
Number of DDR4 slots 4
Memory bus frequency 4600 MHz
Memory bus frequency 3200 MHz
Memory bus frequency 2400 MHz
Memory bus frequency 2667 MHz
Memory bus frequency 2933 MHz
Memory bus frequency 4733 MHz
Memory bus frequency 2133 MHz
Memory bus frequency 3466 MHz
Memory bus frequency 3600 MHz
Memory bus frequency 3733 MHz
Memory bus frequency 3866 MHz
Memory bus frequency 4000 MHz
Memory bus frequency 4133 MHz
Memory bus frequency 4266 MHz
Memory bus frequency 4400 MHz
Memory bus frequency 3400 MHz
Max memory size 128
Expansion slots 1 x PCIe 4.0 x 16
Expansion slots 1 x PCIe 3.0 x 4
Expansion slots 1 x PCIe 4.0 x 4
Expansion slots 1 x M.2
Max. number of SATA devices 4
RAID Yes
Sound card Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Network interface Bluetooth
Network interface 1 x 10/100/1000 Mbit/s
Network interface Wi-Fi 802.11a/b/g/n/ac
Network interface Intel Wi-Fi AC 3168 WiFi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band Bluetooth 4.2 Support for 11ac wireless standard and up to 433 Mbps data rate
USB ports at back panel 8
USB ports on motherboard 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 4
FireWire (IEEE 1394) No
COM connector / port No
LPT connector / port No
External connectors 1 x PS/2 Keyboard/MouseCombo
External connectors 1 x DVI-D
External connectors 1 x HDMI
External connectors 1 x Line In
External connectors 1 x Line Out
External connectors 1 x MIC
External connectors 1 x RJ-45
External connectors 4 x USB 2.0
External connectors 4 x USB 3.0
External connectors 2 x SMA
Onboard connectors 1 x 8pin 12V power
Onboard connectors 1 x TPM header
Onboard connectors 1 x System panel header
Onboard connectors 1 x 24pin ATX zasilanie
Onboard connectors 2 x M.2
Onboard connectors 4 x SATA III 6Gb/s
Onboard connectors 1 x USB 2.0/1.1 header
Onboard connectors 1 x USB 3.0 header
Onboard connectors 1 x Front panel audio header
Onboard connectors 1 x Clear CMOS jumper
Onboard connectors 1 x Q-Flash Plus button
Special functions App Center support @BIOS EasyTune ON/OFF Landing RGB fusion Smart Backup System information viewer Support for Q-Flash Plus Q-Flash support Xpress installation support
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor micro ATX
Dimensions 24.4 x 24.4cm
Supported operating systems Windows 11
Supported operating systems Windows 10
Software Norton Internet Security (OEM version) LAN bandwidth management software
Detailed data on disk/drive interfaces 1 x M.2 connector (M2A_CPU), integrated into the processor, supporting Socket 3, M key, 2242/2260/2280/22110 type SSDs: AMD Ryzen 5000 Series and Ryzen 3000 Series processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen 5000 G-Series and Ryzen 4000 G-Se
Graphics Integrated GPU: 1 x DVI-D port supporting a maximum resolution of 1920x1200 @ 60Hz The DVI-D port does not support D-Sub connection via an adapter. 1 x HDMI port supporting a maximum resolution of 4096x2160 @ 60Hz Supports HDMI 2.1, HDCP 2.3 and HDR. Maxi

Dimensions and weights

Gross weight
1 kg
Package width
27 cm
Package height
27 cm
Package length
7 cm

Product codes

EAN
4719331810962
Manufacturer code
KBGBAAA7B550U02
