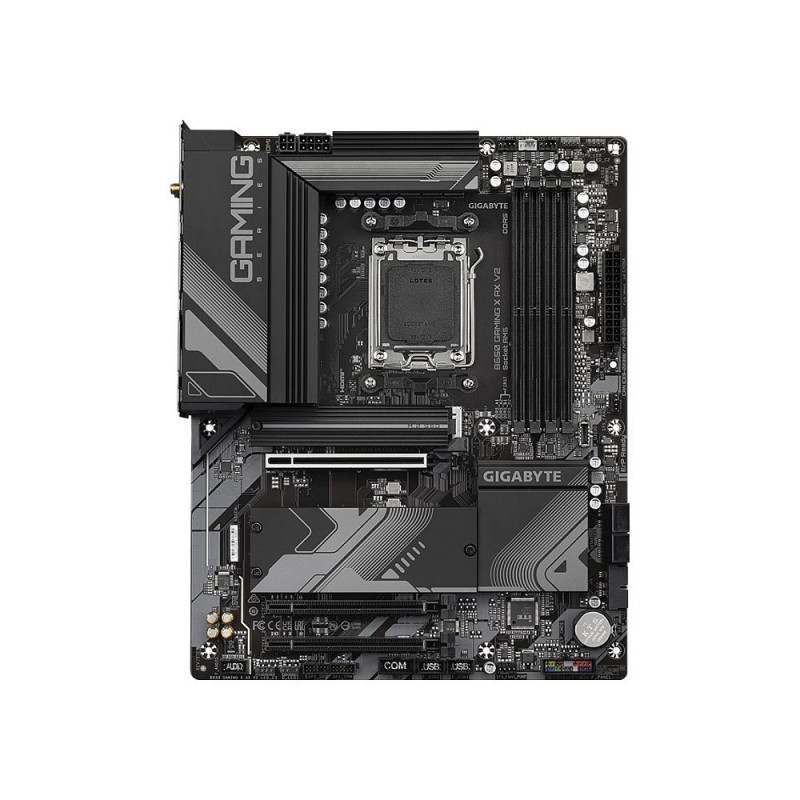

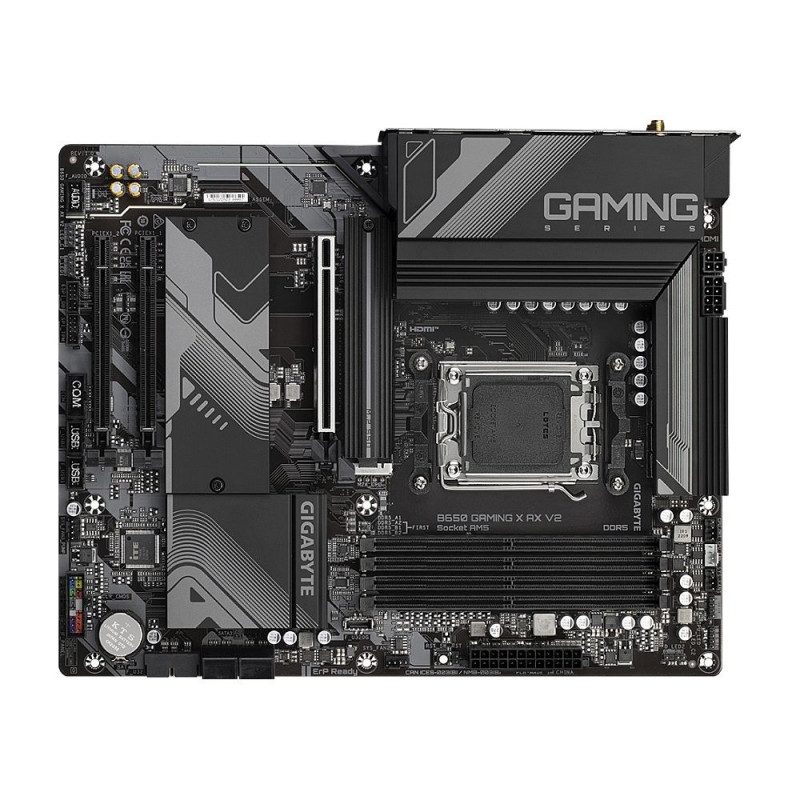

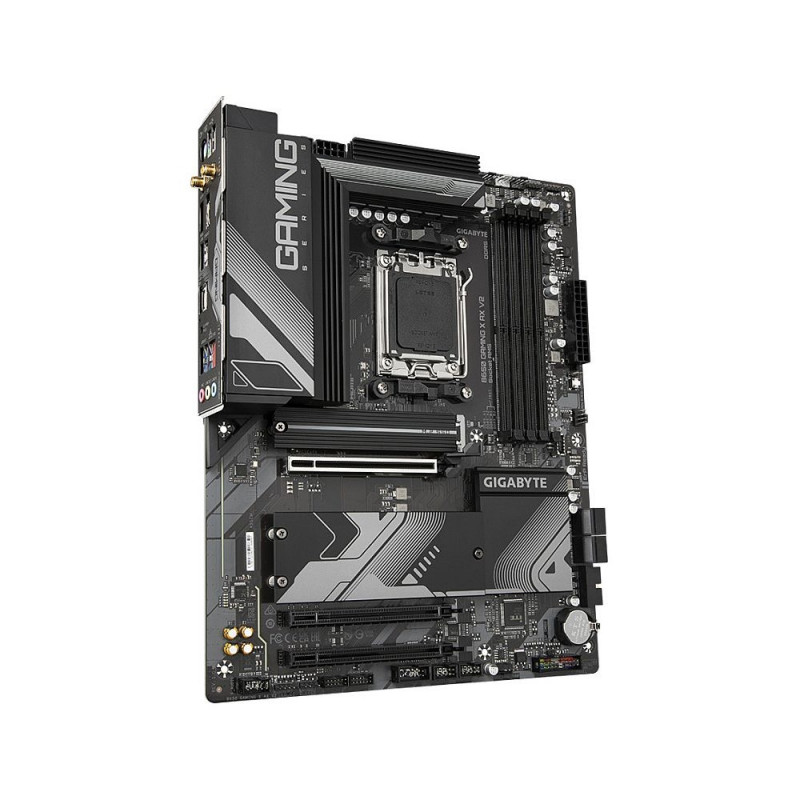

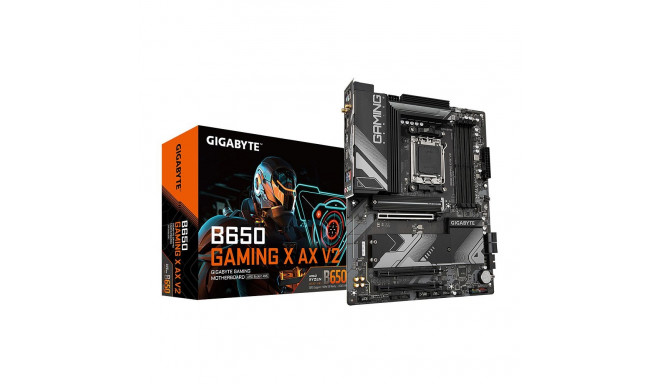

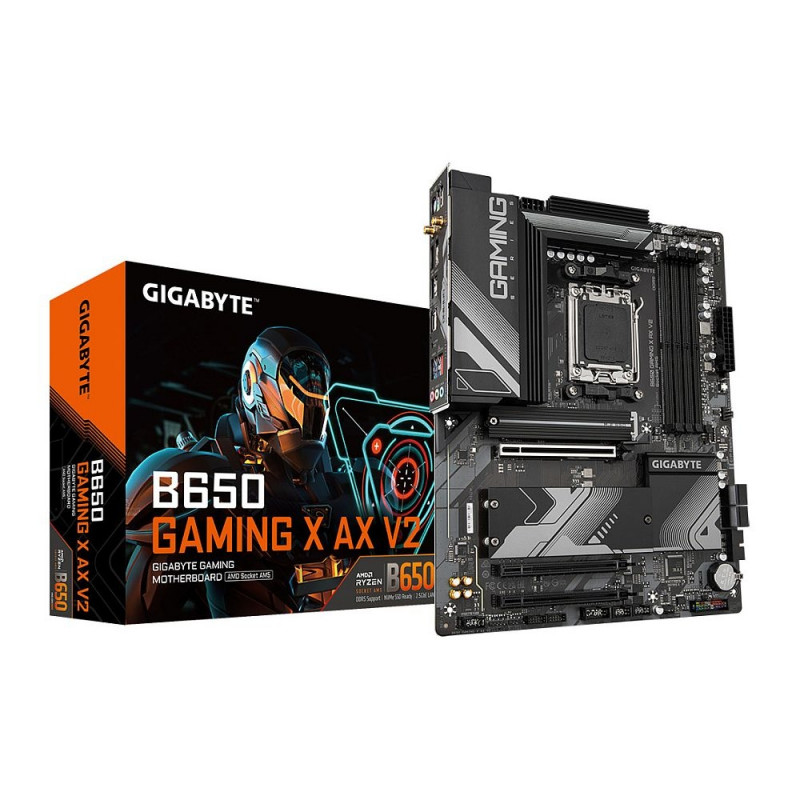

"AM5 Gigabyte B650 GAMING X AX V2"

224,99 €

Monthly payment starting from 7,67 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

"GIGABYTE B650 GAMING X AX V2 Mainboard - AMD Ryzen 9000er-Serie, 8+2+2 Phasen VRM, bis zu 8000 MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2,5 GbE LAN, WIFI 6E, USB 3.2 Gen 2. Prozessorhersteller: AMD, Prozessorsockel: Sockel AM5, Kompatible Prozessoren: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Unterstützte Arbeitsspeicher: DDR5-SDRAM, RAM-Speicher maximal: 256 GB, Arbeitsspeicher Typ: DIMM. Unterstützte Speicherlaufwerk-Schnittstellen: M.2, SATA III, Unterstützte Speicherlaufwerke: HDD & SSD, RAID Level: 0, 1, 10. Maximale Auflösung: 4096 x 2160 Pixel. Ethernet Schnittstellen Typ: 2.5 Gigabit Ethernet, LAN-Controller: Realtek RTL8125, Top WLAN-Standard: Wi-Fi 6E (802.11ax)"
Prozessorhersteller AMD
Prozessorsockel Sockel AM5
Unterstützte Prozessorsteckplätze Sockel AM5
Unterstützte Arbeitsspeicher DDR5-SDRAM
Anzahl der Speichersteckplätze 4
Arbeitsspeicher Typ DIMM
Speicherkanäle Zweikanalig
Unterstützte Speichertaktrate (max.) 8000 MHz
Unterstützte Speicherlaufwerke HDD & SSD
RAID Level 0, 1, 10
Parallele Verarbeitungstechnologie Nicht unterstützt
Maximale Auflösung 4096 x 2160 Pixel
Anzahl USB 2.0 Schnittstellen 2
USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse 1
SATA III Anschlüsse 4
Serielle Port-Headers 1
Anzahl USB 2.0 Anschlüsse 3
USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A 3
USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A 1
USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ C 1
Anzahl Ethernet-LAN-Anschlüsse (RJ-45) 1
Anzahl HDMI-Anschlüsse 1
HDMI-Version 2.1
Anzahl DisplayPort Anschlüsse 1
DisplayPorts-Version 1.4
WiFi-AP-Antennenbuchse 2
Ethernet Schnittstellen Typ 2.5 Gigabit Ethernet
Top WLAN-Standard Wi-Fi 6E (802.11ax)
WLAN-Standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Motherboard Chipsatz AMD B650
Audio-Chip Realtek ALC897
Audio Kanäle 7.1 Kanäle
PC Gesundheitsüberwachung Ventilator, Temperatur, Spannung, Water cooling
Komponente für PC
Motherboardformfaktor ATX
Motherboard Chipsatz Familie AMD
Energiequelle ATX
Unterstützt Windows-Betriebssysteme Windows 10 x64, Windows 11 x64
Anzahl der M.2 (M)-Steckplätze 3
BIOS-Speichergröße 256 Mbit
ACPI-Version 5.0
Desktop Management Interface (DMI) Version 2.7
Systemverwaltung BIOS (SMBIOS) Version 2.7
Ursprungsland China
Menge pro Versandkarton 1 Stück(e)
Batteriegewicht 3 g
Lithiumgewicht pro Akku 0,07 g
Anzahl Batteriezellen 1
Akku-/Batterietechnologie Lithium-Manganese Dioxide (LiMnO2)
Akku-/Batterietyp CR2032
Verpackungsbreite 335 mm
Verpackungstiefe 270 mm
Verpackungshöhe 80 mm
Mitgelieferte Software Norton Internet Security (OEM version)LAN bandwidth management software
BIOS-Typ UEFI AMI
ECC-Kompatibilität Nicht-ECC
Garantiezeit 3 Jahr(e)
Kompatible Prozessoren AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Unterstützte Arbeitsspeichergeschwindigkeit 8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz
RAM-Speicher maximal 256 GB
Eigenschaft Schrauben enthalten
Maximaler interner Speicher pro Steckplatz 64 GB
Unterstützte Speicherlaufwerk-Schnittstellen M.2, SATA III
Maximale unterstützte Anzahl der HDD 4
Anzahl der unterstützten Speicherlaufwerke 7
DirectX-Version 12.0
USB 3.2 Gen 2x2-Anschlüsse 1
Anzahl der CPU-Lüfteranschlüsse 2
Zahl der Chassisventilatorstecker 3
Anzahl der EPS-Stromanschlüsse (4--polig) 1
Anzahl der Wasserpumpenanschlüsse 2
Anzahl der RGB-LED-Stiftleisten 5
Kopfhörerausgänge 1
LAN-Controller Realtek RTL8125
WLAN-Controllermodell Realtek RTL8852CE
Bluetooth-Version 5.3
Produktfarbe Braun
PCI-Express x16 (Gen 3.x)-Anschlüsse 2
PCI Express x16-Steckplätze (Gen 4.x) 1
1. M.2 größte Schlüsselgröße 25110
1. M.2 höchste PCI Express-Generation 5.0
2. M.2 größte Schlüsselgröße 25110
2. M.2 höchste PCI Express-Generation 4.0
3. M.2 größte Schlüsselgröße 25110
3. M.2 höchste PCI Express-Generation 4.0
Paketgewicht 2,16 kg

Dimensions and weights

Gross weight
1.92 kg
Package width
30.5 cm
Package height
3.5 cm
Package length
24.4 cm

Product codes

EAN
4719331860073
