Motherboard - ASUS Pro Ws Wrx90e Sage AMD Wrx90 Socket Str5 Eeb

1 949 €

Monthly payment starting from 66,43 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Socket sTR5 motherboard with 8 DDR5-SDRAM slots and 7 PCI Express x16 Gen 5.x slots. Supports up to 10 storage drives via M.2, SATA III, and SlimSAS interfaces, and features dual Gigabit Ethernet ports.
Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

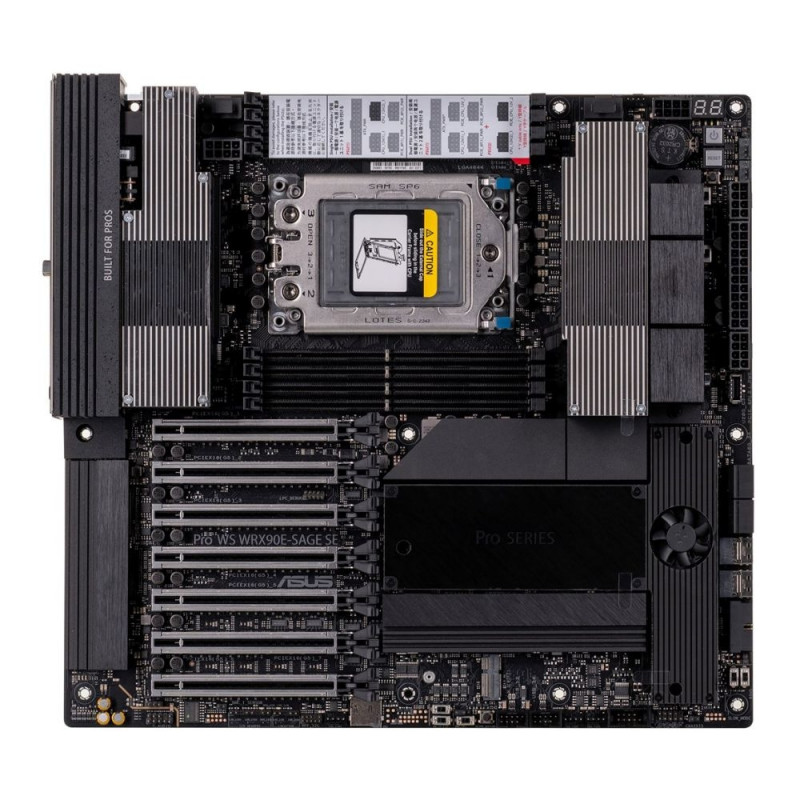

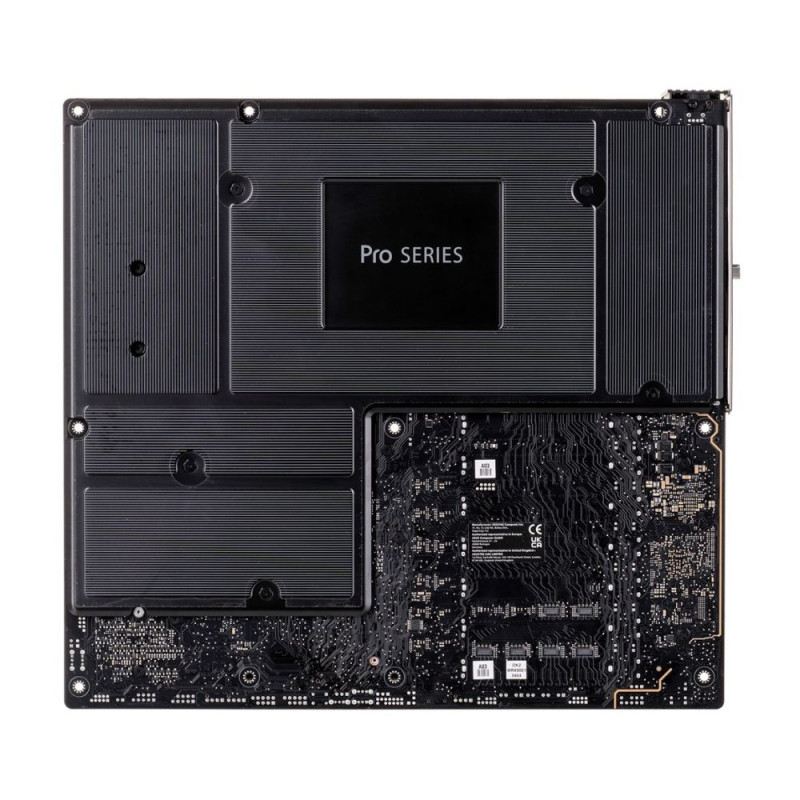

ASUS WRX90E Sage AMD WRX90 Socket STR5 EEB Motherboard

The ASUS PRO WS WRX90E-SAGE SE is a professional-grade motherboard designed for workstations and servers, based on the AMD WRX90 chipset. It supports up to 10 storage drives and features octa-channel memory support.

Key Features:
  • Supports up to 10 storage drives (HDDs/SSDs)
  • 8 DDR5-SDRAM memory slots with octa-channel memory support
  • Dual Gigabit Ethernet ports and 7 PCI Express x16 Gen 5.x slots
  • Supports RAID levels 0, 1, 5, and 10

Processor
Processor manufacturer AMD
Processor socket Socket sTR5
Features
Audio chip Realtek ALC1220P
Motherboard chipset AMD WRX90
Component for Workstation
Motherboard form factor EEB
Windows operating systems supported Windows 11, Windows 10 x64
Motherboard chipset family AMD
Memory
Supported memory types DDR5-SDRAM
Number of memory slots 8
Memory slots type DIMM
ECC Yes
Memory channels Octa-channel
Weight & dimensions
Width 305 mm
Depth 330 mm
Network
Ethernet LAN Yes
Ethernet interface type Gigabit Ethernet, Fast Ethernet, 10 Gigabit Ethernet
Wi-Fi No
Internal I/O
Number of chassis fan connectors 5
Chassis intrusion connector Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
ATX Power connector (24-pin) Yes
USB 2.0 connectors 2
USB 3.2 Gen 2x2 connectors 1
Front panel audio connector Yes
CPU fan connector Yes
Number of SATA III connectors 4
Number of COM connectors 1
EPS power connector (8-pin) Yes
TPM connector Yes
BIOS
BIOS memory size 256 Mbit
BIOS type UEFI AMI
Clear CMOS button Yes
Storage controllers
Supported storage drive types HDD & SSD
Number of HDDs supported 4
Supported storage drive interfaces M.2, SATA III, SlimSAS
RAID levels 1, 10, 0, 5
Number of storage drives supported 10
RAID support Yes

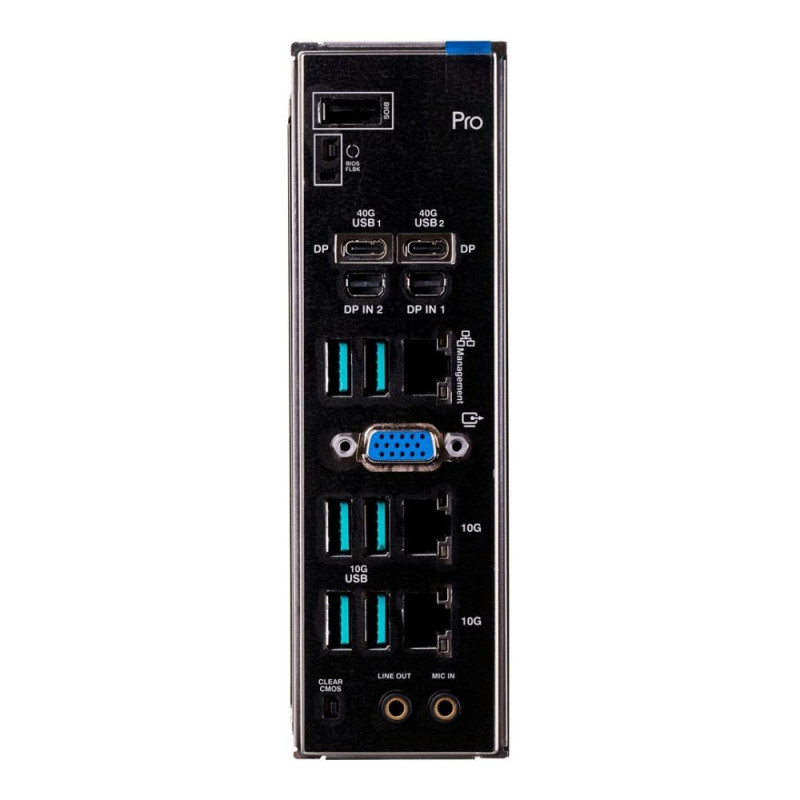

Rear panel I/O ports
USB 2.0 ports quantity 1
VGA (D-Sub) ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 6
Ethernet LAN (RJ-45) ports 2
USB4 Gen 3x2 ports quantity 2
USB connector type USB Type-C, USB Type-A
Expansion slots
PCI Express x16 (Gen 5.x) slots 7
Number of M.2 (M) slots 4
Other features
Mini DisplayPorts quantity 2

Width 305 mm
Height 100 mm
Length 330 mm
Product Weight 500 g
Country TW

Dimensions and weights

Gross weight
4.71 kg
Package width
8 cm
Package height
36 cm
Package length
37.5 cm

Product codes

EAN
4711387441145
