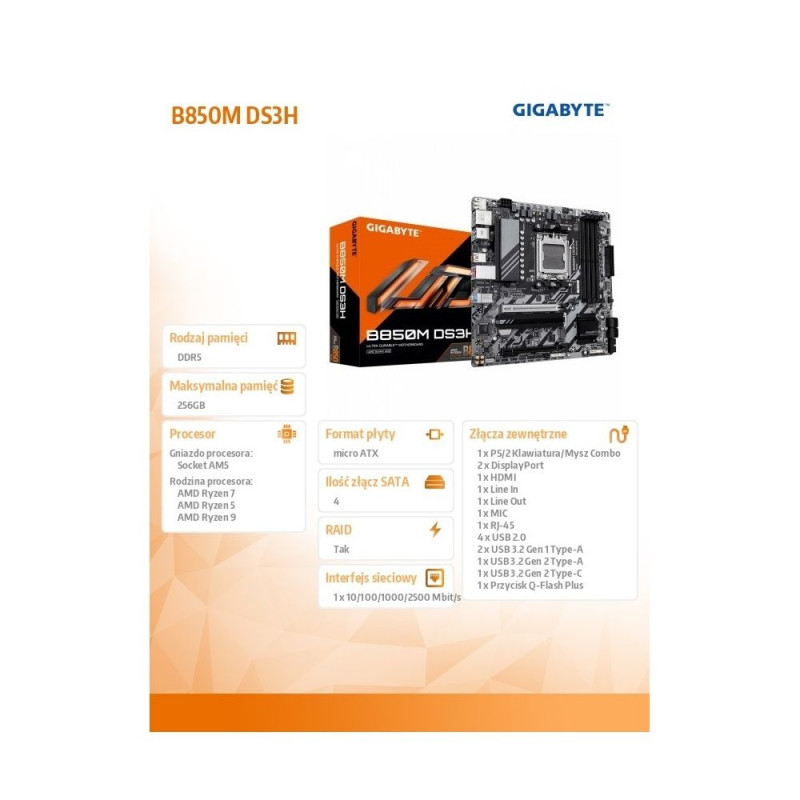

Motherboard B850M DS3H

Addional discount of 4%
will be applied in shopping cart
(min. 10€ purchase)
161,99 €

Monthly payment starting from 5,52 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

X3D Turbo Mode
Unleash next-generation gaming performance with one-click activation.

X3D Turbo Mode's unique optimization parameters allow even Ryzen 9000 X3D processors to boost gaming performance, and Ryzen 9000 processors without X3D to achieve similar levels of gaming performance as their Ryzen X3D counterparts. Enjoy smoother gameplay, higher frame rates, and reduced lag with GIGABYTE's BIOS innovation, X3D Turbo Mode.

  • X3D Turbo Mode: Unleash next-generation gaming performance
  • AMD AM5 Socket: Supports AMD Ryzen 9000/8000/7000 Series Processors
  • 8+2+2 Phase Digital Twin VRM
  • Dual-Channel DDR5 Memory: 4 DIMMs with AMD EXPO Memory Module Support
  • EZ-Latch: PCIe x16 slot with Quick Release Design
  • M.2 EZ-Latch Plus: Screwless M.2 SSD Installation
  • User-Friendly Interface: Multi-Theme, AIO Fan Control, and Automatic Q-Flash Scanning in BIOS and Software
  • Ultra-Fast Storage: 2 M.2 Slots, Including 1 PCIe 5.0 Slot
  • M.2 Thermal Guard: Ensures M.2 SSD Performance
  • High-Speed Networking: 2.5GbE LAN
  • Expanded Connectivity: 2 DP, HDMI Ports

Model B850M DS3H
CPU socket Socket AM5
Processor family AMD Ryzen 7
Processor family AMD Ryzen 5
Processor family AMD Ryzen 9
Integrated CPU No
Chipset manufacturer AMD
Chipset type AMD B850
Memory type DDR5
Number of DDR5 slots 4
Memory bus frequency 8200 MHz
Memory bus frequency 8000 MHz
Memory bus frequency 7800 MHz
Memory bus frequency 4400 MHz
Memory bus frequency 7000 MHz
Memory bus frequency 7200 MHz
Memory bus frequency 7600 MHz
Memory bus frequency 4800 MHz
Memory bus frequency 5200 MHz
Memory bus frequency 5600 MHz
Memory bus frequency 6000 MHz
Memory bus frequency 6200 MHz
Memory bus frequency 6400 MHz
Memory bus frequency 6600 MHz
Memory bus frequency 6666 MHz
Memory bus frequency 6800 MHz
Max memory size 256
Expansion slots 2 x M.2
Expansion slots 1 x PCIe 4.0 x 4
Expansion slots 1 x PCIe 4.0 x 8
Expansion slots 1 x PCIe 5.0 x 16
Expansion slots 1 x PCIe 3.0 x 4
Max. number of SATA devices 4
RAID Yes
Network interface 1 x 10/100/1000/2500 Mbit/s
USB ports at back panel 8
USB ports on motherboard 7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 3
FireWire (IEEE 1394) No
COM connector / port No
LPT connector / port No
External connectors 2 x USB 3.2 Gen 1 Type-A
External connectors 1 x USB 3.2 Gen 2 Type-C
External connectors 1 x PS/2 Keyboard/MouseCombo
External connectors 1 x USB 3.2 Gen 2 Type-A
External connectors 4 x USB 2.0
External connectors 1 x HDMI
External connectors 1 x Line In
External connectors 1 x Line Out
External connectors 1 x MIC
External connectors 2 x DisplayPort
External connectors 1 x RJ-45
External connectors 1 x Q-Flash Plus button
Onboard connectors 1 x Reset button
Onboard connectors 1 x RGB LED strip header
Onboard connectors 1 x 8pin 12V power
Onboard connectors 2 x M.2
Onboard connectors 1 x 4-pin water-pump-fan
Onboard connectors 1 x 4pin CPU fan
Onboard connectors 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors 1 x 4pin Chassis fan
Onboard connectors 3 x Addressable LED
Onboard connectors 1 x Reset jumper
Onboard connectors 1 x System panel header
Onboard connectors 1 x Front panel audio header
Onboard connectors 1 x Clear CMOS jumper
Onboard connectors 2 x USB 2.0/1.1 header
Onboard connectors 1 x USB 3.2 Gen 1 Type-A
Onboard connectors 1 x USB 3.2 Gen 2 Type-C
Onboard connectors 1 x TPM header
Onboard connectors 4 x SATA III 6Gb/s
Onboard connectors 1 x 24pin ATX zasilanie
Form factor micro ATX
Supported operating systems Windows 10
Supported operating systems Windows 11
Designation
Sound card Realtek Audio CODEC  High Definition Audio  2/4/5.1/7.1-channel
Network interface Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Software     Norton Internet Security (OEM version)     LAN bandwidth management software
Detailed data on disk/drive interfaces Expansion connectors  1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:  AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode  AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode  AMD Ryzen 8000 Series-Phoenix 2 Process
Special functions GIGABYTE Control Center (GCC) Support *Available applications in GCC may vary depending on the motherboard model. Supported features of each application may also vary depending on the motherboard specifications. Q-Flash Support Q-Flash Plus Support Smart

Dimensions and weights

Gross weight
1.125 kg
Package width
27 cm
Package height
27 cm
Package length
8 cm

Product codes

EAN
4719331866518
Manufacturer code
KBGBAAA8B850U01
