Home page » Computers & IT»Computer components»Mainboards»Motherboard B860 A ELITE WF7 ICE

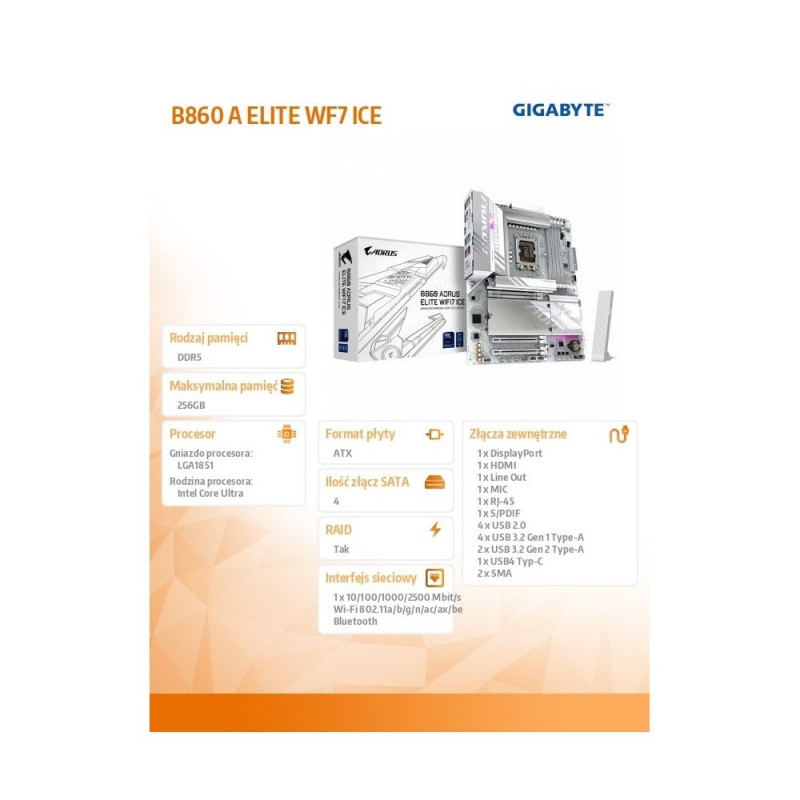

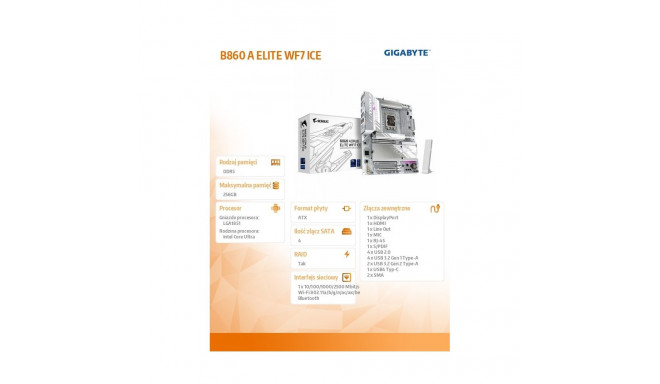

Motherboard B860 A ELITE WF7 ICE

247,99 €

Monthly payment starting from 8,45 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

B860 AORUS ELITE WIFI7 ICE

  • Supports Intel Core Ultra (2-series) processors
  • Digital twin 14+1+2 phase VRM
  • Dual-channel DDR5 memory: 4 DIMMs with XMP memory module support
  • D5 Bionic Corsa for infinite memory performance
  • AI Perfdrive: Provides users with an optimal and customized BIOS settings profile
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus: Quick-release PCIe and M.2 slots with a screwless design
  • EZ-Latch Click: M.2 heatsinks with a screwless design
  • Sensor Panel Link: Onboard video port for seamless panel configuration
  • User-friendly interface: Multi-Theme, AIO fan control, and automatic Q-Flash scanning in BIOS and software
  • Ultra-fast storage: 3 M.2 slots, including 1 PCIe 5.0 x4
  • Efficient cooling: VRM Thermal Armor Advanced and M.2 Thermal Guard Ext.
  • High-speed networking: 2.5GbE LAN and Wi-Fi 7 with a directional ultra-high-gain antenna
  • Expanded connectivity: USB4 Type-C with DP-Alt, HDMI, DisplayPort

Model B860 A ELITE WF7 ICE
CPU socket LGA1851
Processor family Intel Core Ultra
Integrated CPU No
Chipset manufacturer Intel
Memory type DDR5
Number of DDR5 slots 4
Memory bus frequency 9200 MHz
Memory bus frequency 8600 MHz
Memory bus frequency 8800 MHz
Memory bus frequency 6600 MHz
Memory bus frequency 6800 MHz
Memory bus frequency 7000 MHz
Memory bus frequency 7200 MHz
Memory bus frequency 7400 MHz
Memory bus frequency 7600 MHz
Memory bus frequency 7800 MHz
Memory bus frequency 7900 MHz
Memory bus frequency 7950 MHz
Memory bus frequency 8000 MHz
Memory bus frequency 8200 MHz
Memory bus frequency 5600 MHz
Memory bus frequency 6400 MHz
Memory bus frequency 8266 MHz
Memory bus frequency 8400 MHz
Max memory size 256
Expansion slots 1 x PCIe 5.0 x 16
Expansion slots 2 x PCIe 4.0 x 1
Expansion slots 1 x M.2
Max. number of SATA devices 4
RAID Yes
Network interface 1 x 10/100/1000/2500 Mbit/s
Network interface Bluetooth
Network interface Wi-Fi 802.11a/b/g/n/ac/ax/be
USB ports at back panel 11
USB ports on motherboard 7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 4
FireWire (IEEE 1394) No
COM connector / port No
LPT connector / port No
External connectors 2 x USB 3.2 Gen 2 Type-A
External connectors 1 x DisplayPort
External connectors 1 x HDMI
External connectors 1 x Line Out
External connectors 1 x MIC
External connectors 1 x RJ-45
External connectors 1 x S/PDIF
External connectors 4 x USB 2.0
External connectors 4 x USB 3.2 Gen 1 Type-A
External connectors 2 x SMA
External connectors 1 x USB4 Type-C
Onboard connectors 1 x Reset jumper
Onboard connectors 1 x Reset button
Onboard connectors 3 x Addressable LED
Onboard connectors 1 x RGB LED strip header
Onboard connectors 1 x Q-Flash Plus button
Onboard connectors 1 x TPM header
Onboard connectors 1 x System panel header
Onboard connectors 1 x Front panel audio header
Onboard connectors 1 x Clear CMOS jumper
Onboard connectors 1 x Power button
Onboard connectors 1 x 4pin CPU fan
Onboard connectors 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors 3 x 4pin Chassis fan
Onboard connectors 1 x 4-pin water-pump-fan
Onboard connectors 2 x 8pin 12V
Onboard connectors 1 x 24pin ATX zasilanie
Onboard connectors 3 x M.2
Onboard connectors 4 x SATA III 6Gb/s
Onboard connectors 2 x USB 2.0/1.1 header
Onboard connectors 1 x USB 3.2 Gen 1 Type-A
Onboard connectors 1 x USB 3.2 Gen 2 Type-C
Onboard connectors 1 x HDMI
Form factor ATX
Supported operating systems Windows 11
Designation
Sound card Realtek Audio CODEC  High Definition Audio  2/4/5.1/7.1-channel  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.  Support for S/PDIF Out
BIOS     1 x 256 Mbit flash     Use of licensed AMI UEFI BIOS     PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Software Norton Internet Security (OEM version) LAN bandwidth management software
Detailed data on disk/drive interfaces Expansion connectorsCPU:- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)*The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Graphics Integrated graphics processor - Intel HD Graphics support: 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz *Supports DisplayPort 2.1. 1 x DisplayPort port, supporting a maximum resolutio
Network interface LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless communication module Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.0) 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Supports the 11be 160MHz wireless stan

Dimensions and weights

Gross weight
2.18 kg
Package width
27 cm
Package height
33.5 cm
Package length
8 cm

Product codes

EAN
4719331866846
Manufacturer code
KBGBAIIFB860A00
