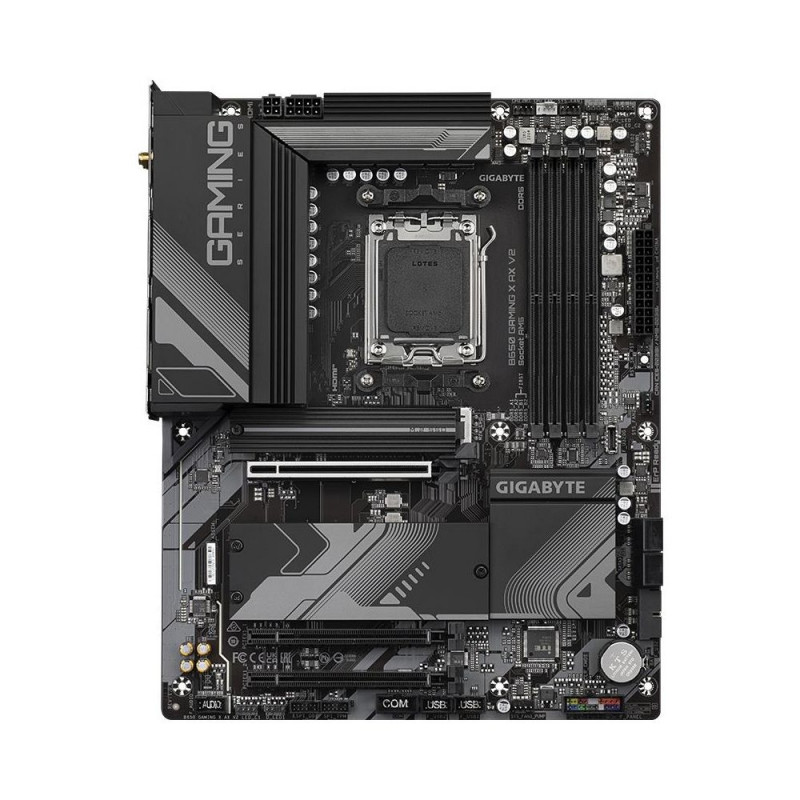

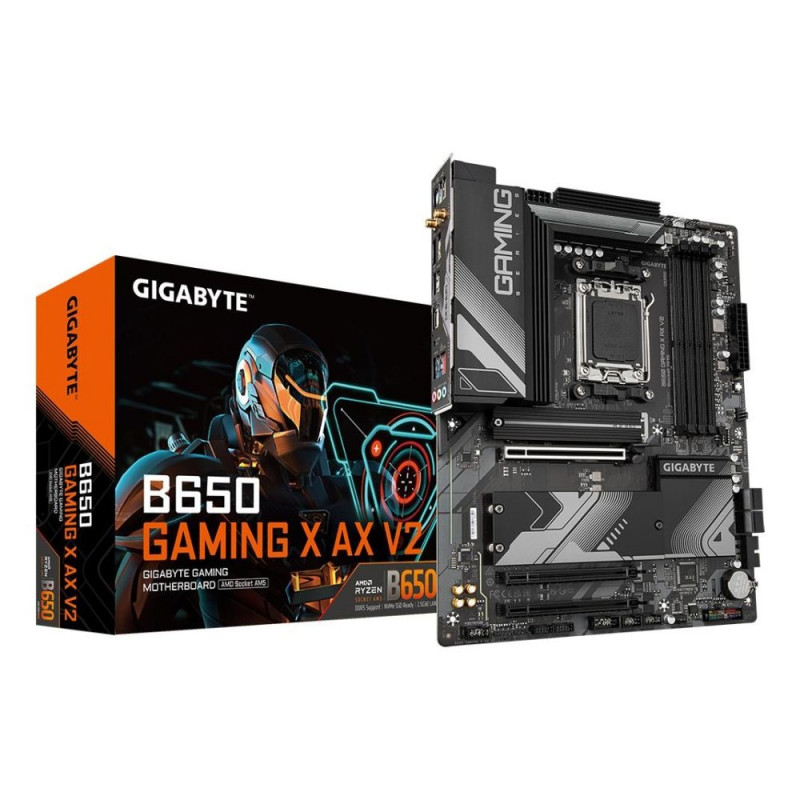

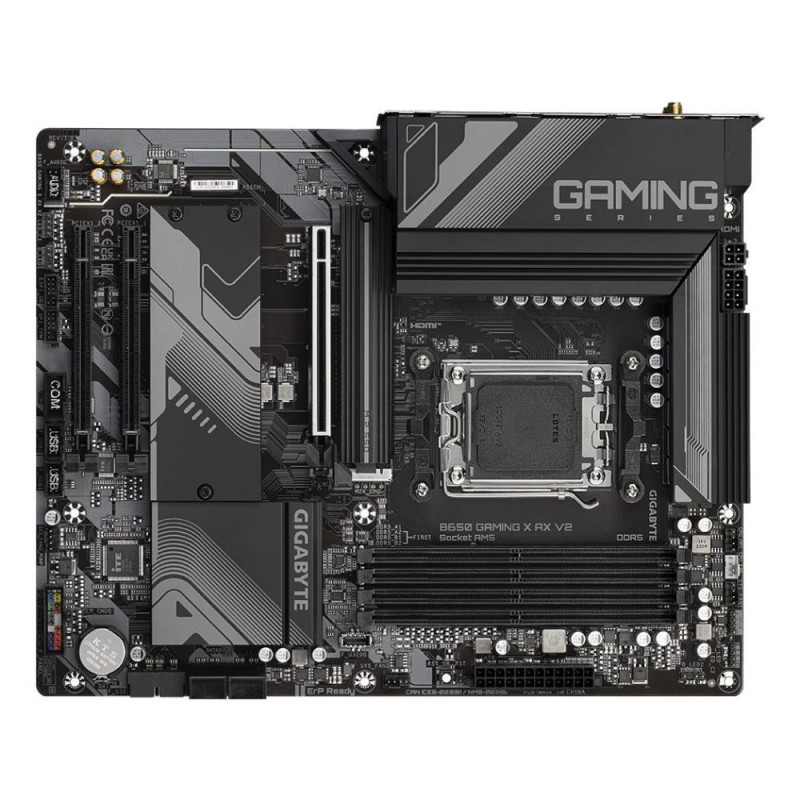

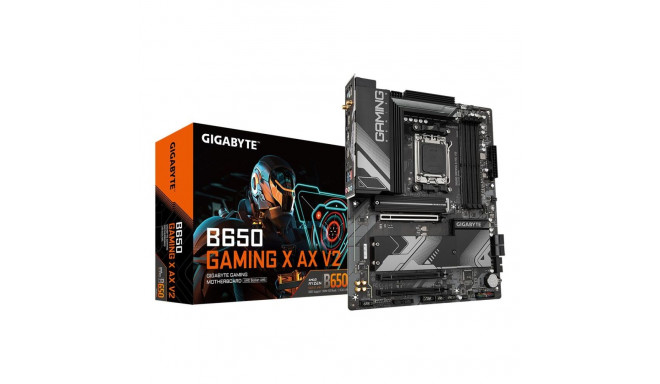

GIGABYTE B650 GAMING X AX V2

AMD Socket AM5
Supports AMD Ryzen 7000/ Ryzen 8000 Series Processors

Unparalleled Performance
Direct 8+2+2 Phases Digital VRM Solution

Dual Channel DDR5
4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support

SuperSpeed Storage
1*PCIe 5.0 x4 + 2*PCIe 4.0 x4 M.2 Connectors

Advanced Thermal Design & M.2 Thermal Guard
To Ensure VRM Power Stability & 25110 M.2 SSD Performance

EZ-Latch
PCIe x16 Slot with Quick Release Design

Fast Networks
2.5GbE LAN & Wi-Fi 6E 802.11ax

Extended Connectivity
DP, HDMI, Rear USB-C 10Gb/s, Front USB-C 20Gb/s

Smart Fan 6
Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

Q-Flash Plus
Update BIOS Without Installing the CPU, Memory and Graphics Card

Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

Digital VRM Design
8+2+2 Phases Digital VRM Solution
GIGABYTE UD series motherboards use a 8+2+2 phases digital PWM design to support AMD's new generation CPU by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

DDR5 EXPO & XMP Overclocking Up to 8000 and Beyond
GIGABYTE is offering a tested and proven platform that the memory overclocking capability is able up to 8000 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO/Intel XMP capable, the EXPO/XMP function is activated and enabled on their GIGABYTE motherboard.

Fully Covered MOSFET Heatsink
3X Large Surface
Increased surface area up to 3X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.
Real One-piece Build
TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors' multi-piece design.

Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
802.11ax Wi-Fi 6E
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

2.5GbE LAN
Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.

PCIe 4.0 Hardware Design
GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.

Hi-Fi Audio
High-End Audio Capacitors. GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Infot ka tootja kodulehelt.
Model B650 GAMING X AX V2 1.2
Chipset AMD B650
Socket SAM5
Form Factor ATX
Memory type DDR5
Frequency speed 8000/7800/6600/6000/6800/5600/6400/6200/4400/5200/4800/7200/7000/7600 MHz
Memory slots 4
Expansion slots PCI-Express 3.0 1x - 1, M.2 - 3, PCI-Express 16x - 1
Input/Output connectors PS/2 - 1, RJ45 - 1, Audio port - 3, DisplayPort - 1, HDMI - 1
Interface USB 3.2 - Yes, USB 2.0 - Yes, USB-C - Yes, Serial - Yes, Bluetooth - Yes, SATA - Yes, WiFi - Yes
Integrated video Depending on CPU
Integrated LAN 2.5 Gigabit
RAID SATA 0, 1, 10; NVMe 0, 1, 10
TPM Header

Dimensions and weights

Gross weight
2.14 kg
Package width
37.2 cm
Package height
37.9 cm
Package length
57.9 cm

Product codes

EAN
4719331860073
Manufacturer code
B650 GAMING X AX V2 1.2
