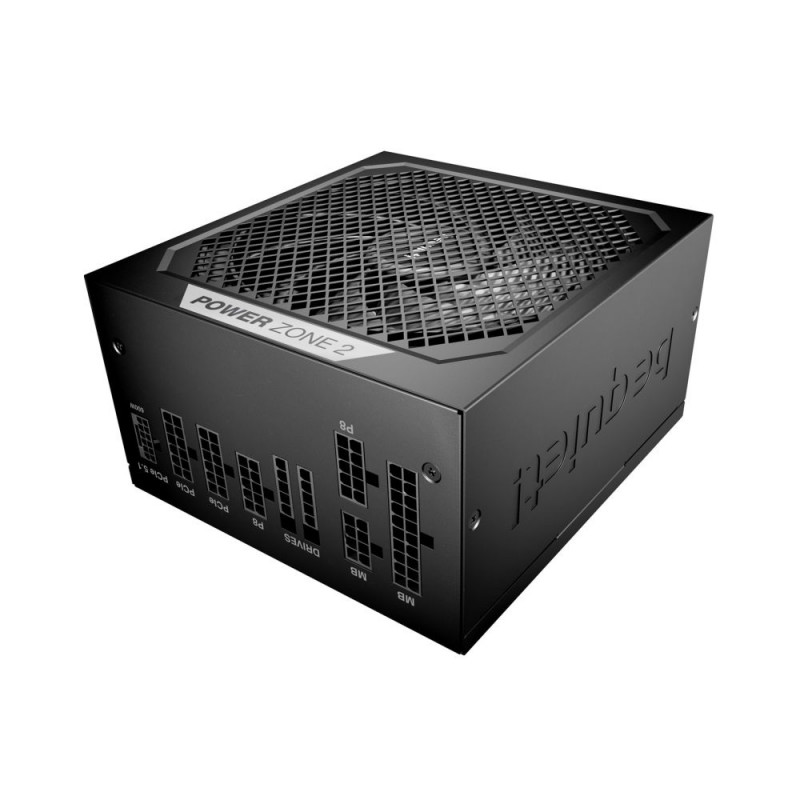

be quiet! POWER ZONE 2 1000W power supply unit 20+4 pin ATX ATX Black

Main info

Product has been archived


Warranty 120 (G)
PCI Express power connectors (16-pin) 1
Waste Electrical and Electronic Equipment (WEEE) compliance Yes
Cooling type Active
Package width 248 mm
Storage temperature (T-T) -40 - 70 °C
AC input frequency 50/60 Hz
Power factor 0.98
Depth 160 mm
Noise level 27.2 dB
Operating temperature (T-T) 0 - 40 °C
Total power 1000 W
Package depth 328 mm
Weight 2.82 kg
EPS power connector (8-pin) Yes
Product colour Black
Height 86 mm
AC input voltage 100 - 240 V
Package weight 3.28 kg
Shipping (inner) case width 28.2 cm
Shipping (inner) case height 34.6 cm
Operating relative humidity (H-H) 0 - 85%
Manual Yes
On/off switch Yes
ATX version 3.1
Screws included Yes
Combined power (+12V) 999.6 W
Efficiency 92.6%
CPU P4 connector (4-pin) 1
Storage relative humidity (H-H) 0 - 95%
Shipping (inner) case length 65.1 cm
Package height 102 mm
Power supply unit (PSU) form factor ATX
Max output current (+5V) 20 A
Mean time between failures (MTBF) 100000 h
80 PLUS certification 80 PLUS Platinum
CPU power cable length 70 cm
Cabling type Fully-Modular
Purpose PC
Combined power (+5Vsb) 15 W
Number of fans 1 fan(s)
Shipping (inner) case gross weight 19.6 kg
Fan diameter 14 cm
Width 150 mm
Package type Box
Products per shipping (inner) case 6 pc(s)
Bearing technology Rifle
Peripheral (Molex) power connectors (4-pin) 1
Motherboard power connector 20+4 pin ATX
Maximum input current (@220V) 6.5 A
CPU power connector (4+4 pin) Yes
Maximum input current (@110V) 13 A
Combined power (+3.3V) 120 W
Combined power (+5V) 120 W
Max output current (+12V) 83.3 A
Cable ties included Yes
Combined power (-12V) 6 W
PCI Express power cable length 60 cm
Max output current (+3.3V) 20 A
Max output current (-12V) 0.5 A
Hold time 22.7 ms
EPS version 2.92
Motherboard power cable length 60 cm
PCI Express power connectors (6+2 pin) 3
Number of SATA power connectors 7
Peak power 1070 W
Max output current (+5Vsb) 3 A
Number of +12V rail(s) 1
Peripheral (Molex) power cable length 1000
Compliance certificates UKCA
SATA power cable length 700
Sustainability certificates Triman
Manual languages English
Power protection features Overheating

Dimensions and weights

Package width
330 cm
Package height
105 cm
Package length
250 cm

Product codes

EAN
4260052191385
Manufacturer code
BP008EU
