Ermenrich NetGeeks NL70 Cable Length Tester

211,99 €

Monthly payment starting from 7,23 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

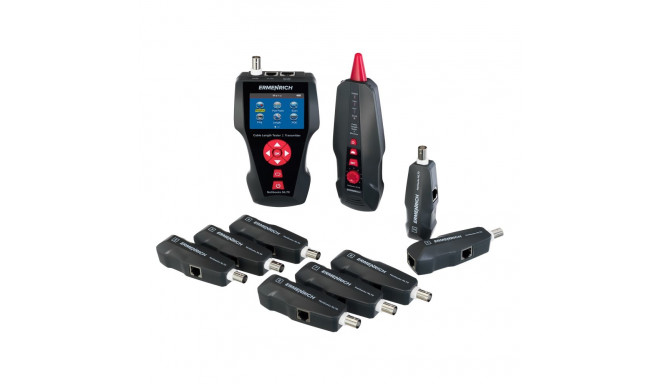

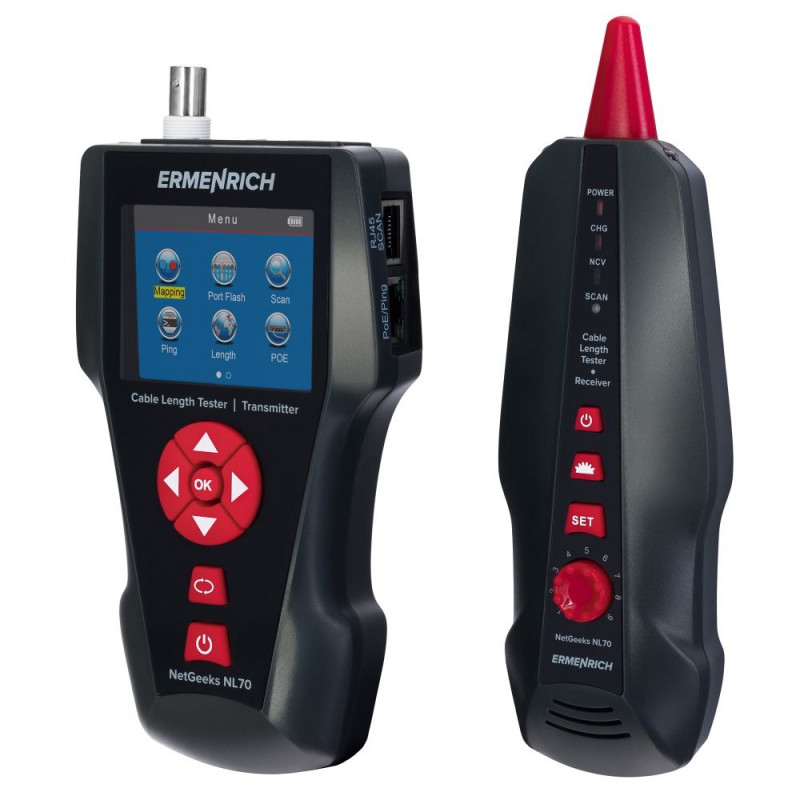

The Ermenrich NetGeeks NL70 Cable Length Tester is a multifunctional measuring tool for testing various network cables (categories 5E/6E), telephone, coaxial cables, and common wires. The device is used for testing cables up to 1,000 meters (3,280ft) long. The kit includes 8 remote units, allowing for 8 simultaneous measurements.

With the Ermenrich NetGeeks NL70, you can test cables for open circuits and short circuits as well as crossed, reversed, and split pairs. The cable length tester can measure the distance to the open circuit. There is a cable trace function to locate the target cable in the cable bundle. The Port Flash feature enables you to find the exact port on the network switch or router to which the target cable is connected. With this tester, you can perform a PoE test and PING test, and save data to a memory card.

The Ermenrich NetGeeks NL70 provides high measurement accuracy and can be calibrated, if needed. The transmitter and receiver are powered by rechargeable batteries, so you won’t have to buy and replace batteries often. A single charge provides 20 hours of transmitter operation and 50 hours of receiver operation.

Key features:

  • Cable length measurement by measuring the capacitance of a cable – up to 1,000 meters (3,280ft)
  • Wire mapping, tracing a target cable in a cable bundle
  • Testing cables for short and open circuits, measuring the distance to open circuits
  • Port Flash function for tracing a cable connected to a switch or router by locating a port with a flashing indication
  • PoE test function for measuring PoE voltage in a twisted pair cable
  • PING test with an IP-address allocation

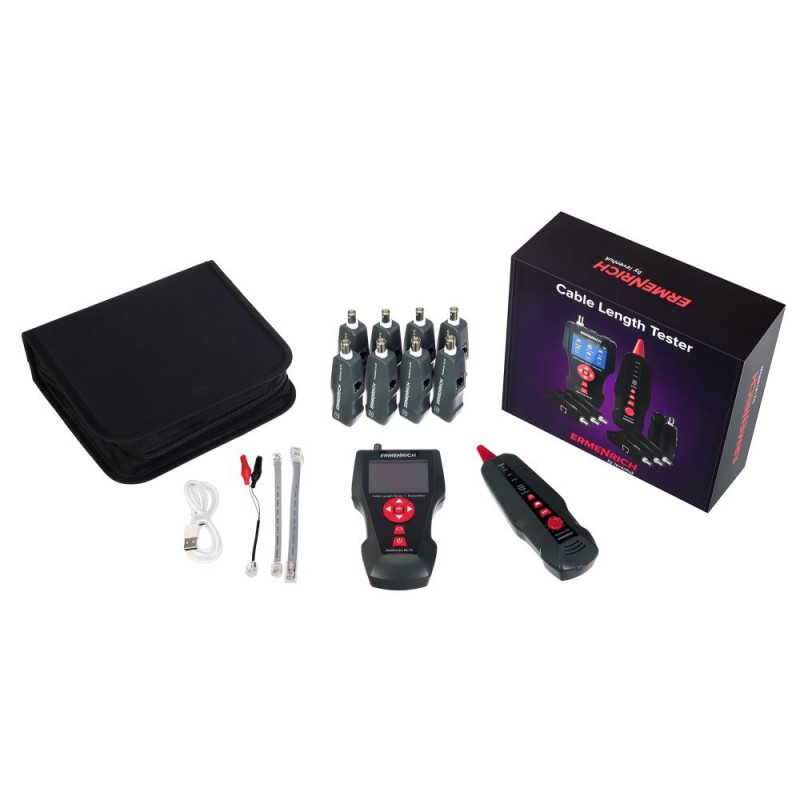

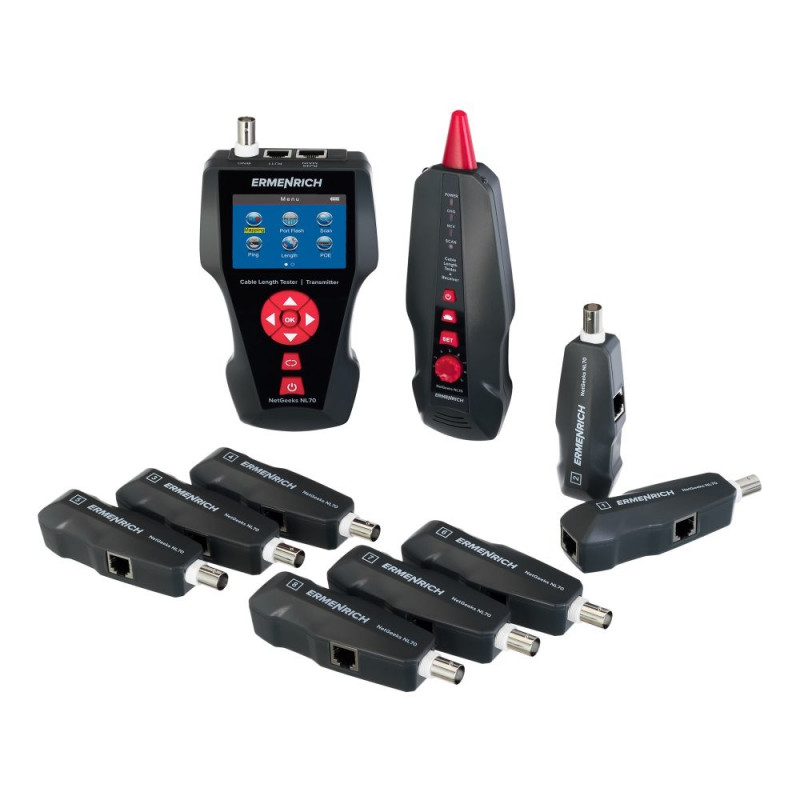

The kit includes:

  • Transmitter
  • Receiver
  • Remote units – 8 pcs.
  • RJ11 patch cord
  • RJ45 patch cord
  • Alligator clip
  • DC cable
  • Micro USB cable

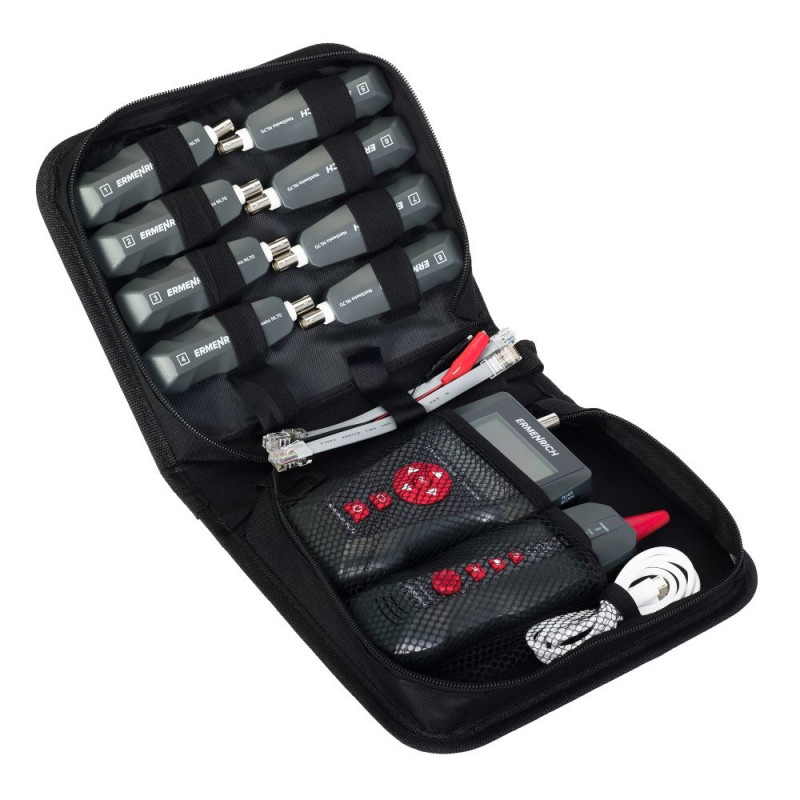

  • Carry bag
  • User manual and warranty card
Brand Ermenrich
Warranty, years 5
EAN 5905555016993
Package size (LxWxH), cm 9.5x23x20
Shipping Weight, kg 1.05
Cable length measurement yes
Cable tracing yes
Crosstalk protection yes
PoE test yes
PING test yes
Measuring range, m 0 — 1000
Error 3 (±0.5m/1.6ft)
Measuring the distance to open circuits yes
Display diagonal, inch 2.8
Display resolution, px 320x240
Display backlight yes
Battery life, h 20
Low battery status indicator yes
Operating humidity range, % 20…70
Adjustable sensitivity yes
Non-contact voltage detection (NCV) yes
Flash light yes
Battery life, h 50
Operating humidity range, % 20…70

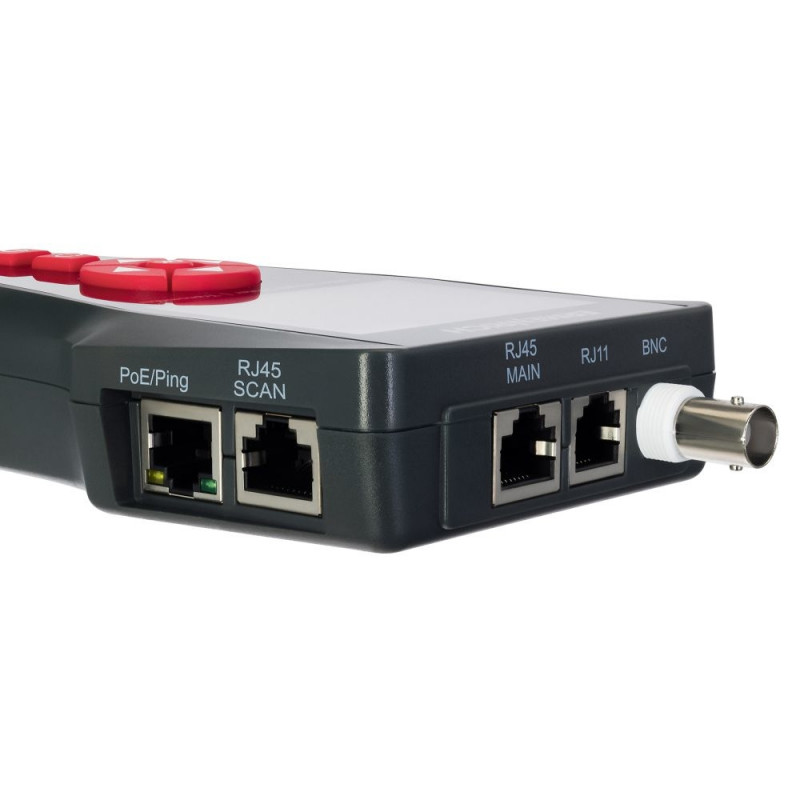

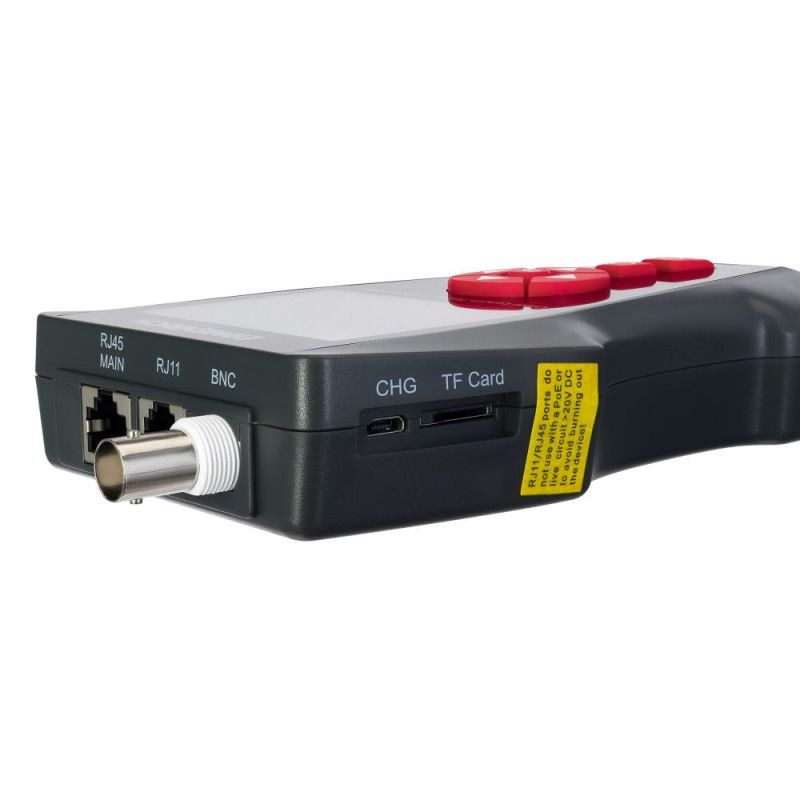

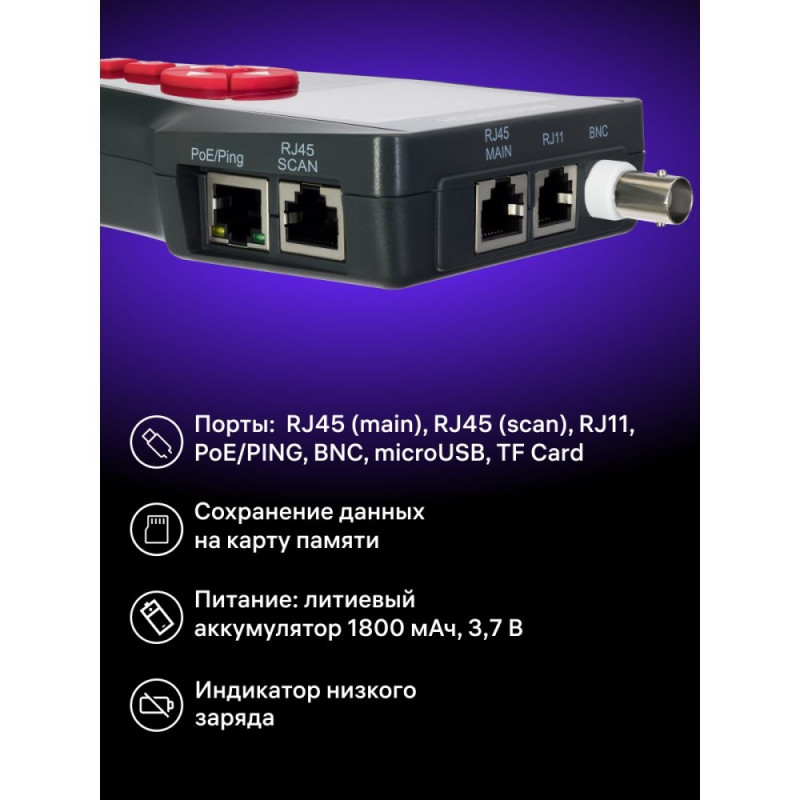

Ports microUSB, RJ45 (main), RJ45 (scan), RJ11, PoE/PING, BNC, TF Card
Tracing cable types STP/UTP (CAT5E, CAT6E) network cable, telephone, coaxial, common wires
Testing cable types STP/UTP (CAT5E, CAT6E) network cable, telephone, coaxial, common wires
Cable testing + (open circuits, short circuits, crossed pairs, reversed pairs, split pairs, crosstalk)
Port flash function +
Measuring method by measuring the capacitance of a cable
Units of measurement m, ft
Calibration +
Minimum cable length for calibration, m (ft) 10 (32.8)
Calibration error, % 2 (±0.5m/1.6ft)
Maximum operating current, mA <150
Protection input voltage: 48V, current: 5mA
Data transmission +, 160 memory slots
Display LCD, color
Power supply 3.7V, 1800mAh, charging via a 5V, 1A DC adapter (not included) and micro USB cable (included)
Auto power off 15 min, 60 min, 120 min, 30 min
Operating temperature range,°C −10… +60 (14… 140)
Ports microUSB, BNC, RJ45, RJ11
Maximum operating current, mA <100
Power supply 3.7V, 1800mAh, charging via a 5V, 1A DC adapter (not included) and micro USB cable (included)
Operating temperature range,°C −10… +60 (14… 140)

Dimensions and weights

Gross weight
1.06 kg
Package width
24 cm
Package height
8.5 cm
Package length
21 cm

Product codes

EAN
5905555016993
