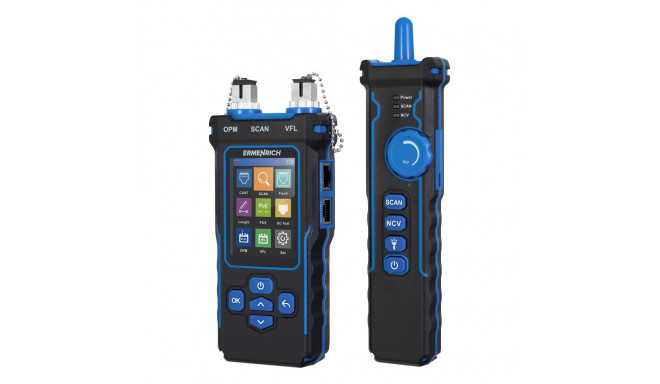

Ermenrich NetGeeks NP60 Optical Wire Tracker

158,99 €

Monthly payment starting from 5,42 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

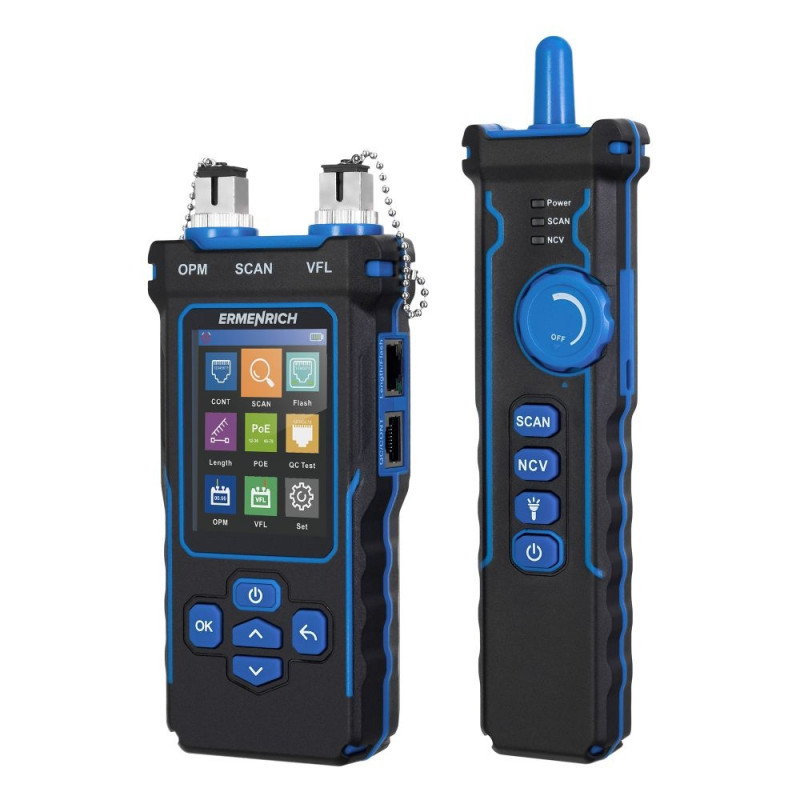

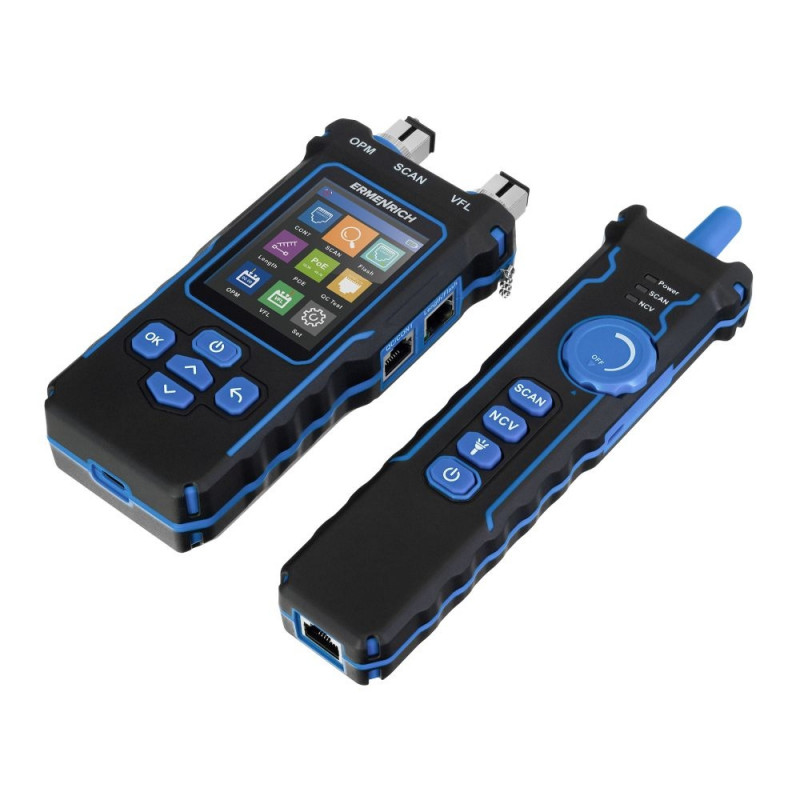

The Ermenrich NetGeeks NP60 combines the functionality of a cable tester, cable length tester, and optical multimeter. It is an excellent choice for installing, testing, and operating twisted pair cable networks, including those used in high-speed Internet connections. It is a great tool for household use and in high demand for professionals too.

In the base test mode, the device tests the condition of a cable line. If there is an open circuit, a crossed pair, or a short circuit somewhere, the test will quickly identify it. If necessary, the crystal head of the twisted pair cable can also be QC tested. The PoE test not only measures the voltage, but also identifies the PSE type and midspan/endspan. The Port Flash function enables you to quickly locate the exact port on the network switch or router to which the target cable is connected.

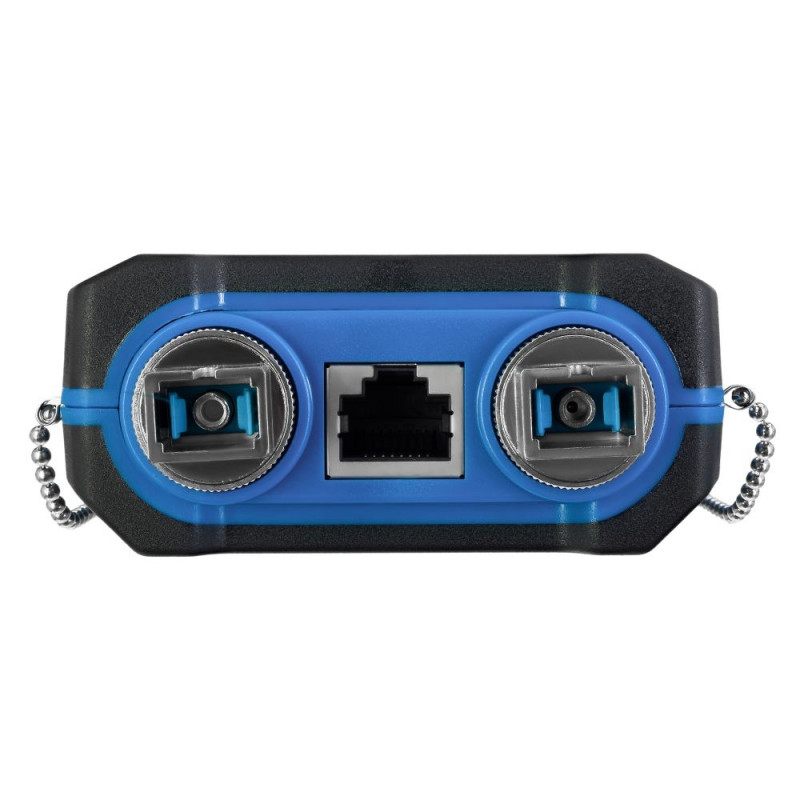

In the optical power meter mode, the tester supports 6 wavelengths and can measure both absolute and relative optical power. The option to set up the reference power level simplifies the measurement procedure. There is also a VFL function, which enables you to locate optical fiber breakage. In the cable length meter mode, it is possible to measure up to 200 meters.

The receiver can operate as a non-contact high voltage meter (NCV function) and is equipped with a flashlight to illuminate dark areas. Both the transmitter and receiver are powered by a rechargeable battery.

Key features:

  • 3-in-1: cable tester, optical power tester, cable length meter
  • Cable testing, cable crystal head QC, PoE test, Port Flash function
  • Length measurement up to 200 meters, selectable units of measurement
  • Optical multimeter with the VFL function and adjustable reference power level
  • Powered by a rechargeable battery

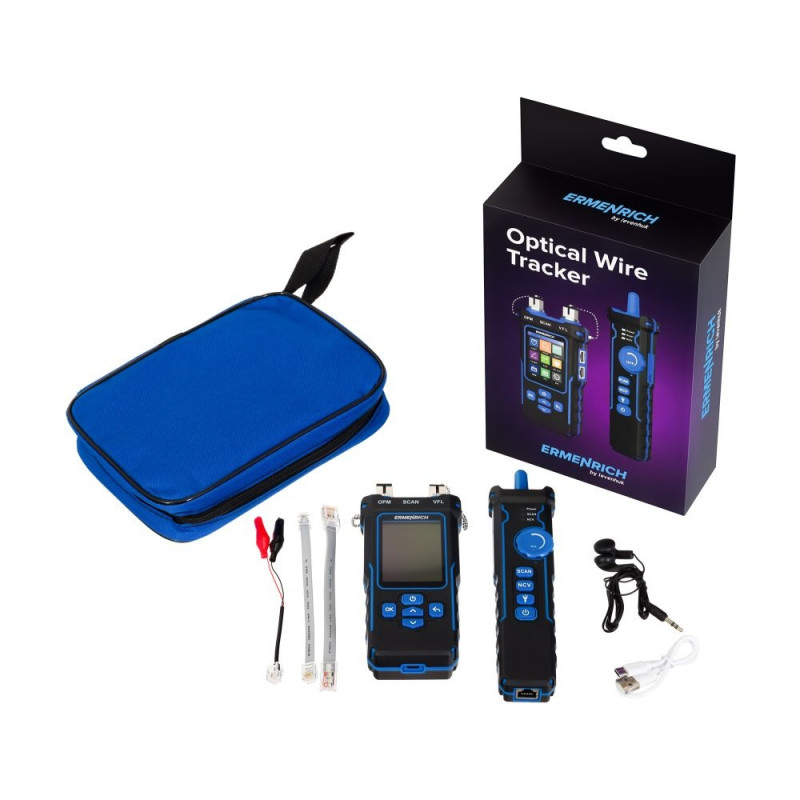

The kit includes:

  • Transmitter
  • Receiver
  • RJ11 patch cord
  • RJ45 patch cord
  • Alligator clip
  • DC cable
  • Earbuds
  • Type-C USB cable

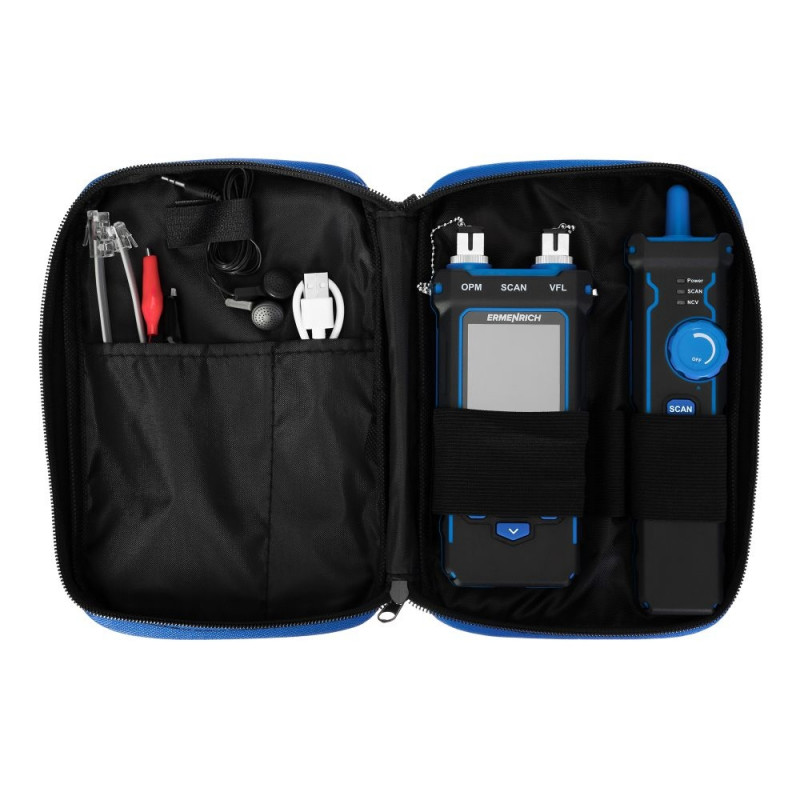

  • Carry bag
  • User manual and warranty card
Brand Ermenrich
Warranty, years 5
EAN 5905555016962
Package size (LxWxH), cm 24x16.5x5.5
Shipping Weight, kg 0.65
Cable length measurement yes
Сable crystal head QC yes
Cable tracing yes
Crosstalk protection yes
PoE test yes
Voltage polarity detection yes
Optical power measurement yes
Measuring range, m 2.5 — 200
=== Delimiter === PoE test
Midspan/endspan identification yes
Operating voltage range (DC), V 5 — 60
=== Delimiter === Optical power measurement
Option to set the reference level yes
Visual fault locator (VFL) yes
Display diagonal, inch 2.8
Display resolution, px 320x240
Display backlight yes
Low battery status indicator yes
Operating humidity range, % 20…70
Adjustable sensitivity yes
Non-contact voltage detection (NCV) yes
Flash light yes

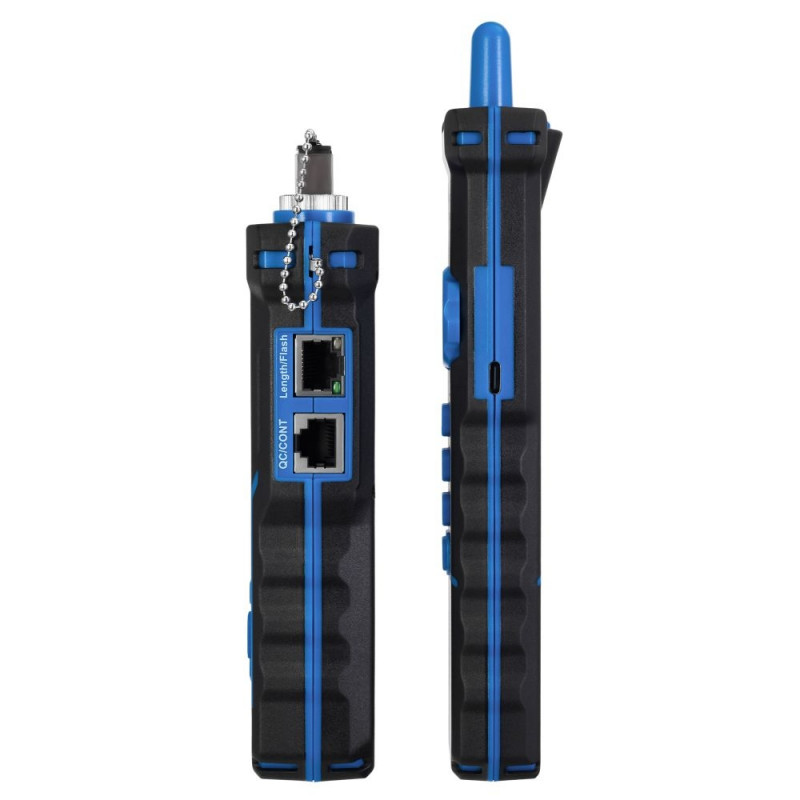

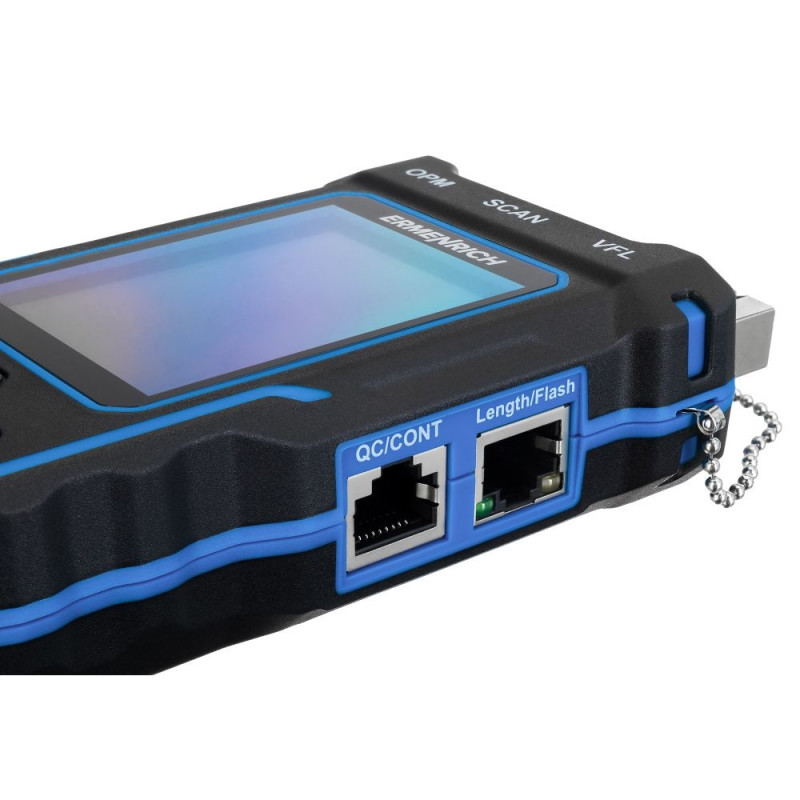

Ports USB 2.0 (C type), PoE, QC, Scan, Length/Flash, Cont, OPM, VFL
Testing cable types STP/UTP (CAT5, CAT6) network cable
Maximum length of the tested cable, m (ft) 600 (1970)
Cable testing +
Port flash function +, (full duplex/half duplex, auto-nego/non-auto-nego, 10/100/1000Mbit/s)
Units of measurement meters/yards, feet
Power source equipment (PSE) type test standard (IEEE 802.3at/af)/non-standard
Optical power meter wavelength, nm 850/1300/1310/1490/1550/1625
Units of measurement dB, dBm, W
Standby current, mA ≤25 (wiremapping/scanning/QC testing), ≤150 (Port Flash)
Protection input voltage: 48V, current: 5mA
Display LCD

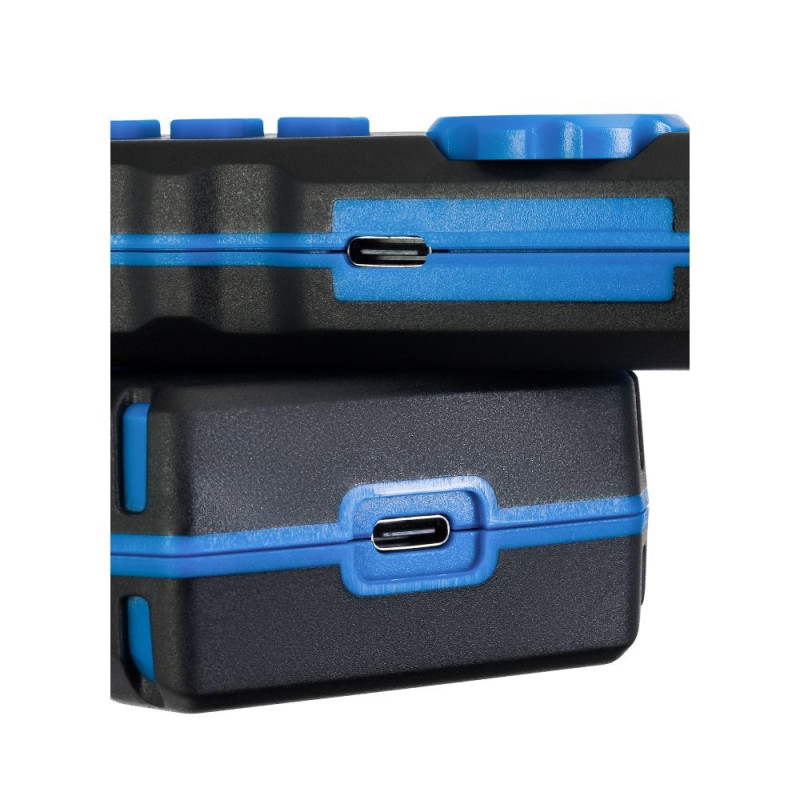

Power supply charging via a USB Type-C cable (included), 1500mAh, 3.7V lithium polymer battery
Auto power off 15 min, 60 min, 120 min, 30 min
Operating temperature range,°C −10… +60 (14… 140)
Ports USB 2.0 (C type), RJ45, earbuds
Maximum operating current, mA ≤300
Power supply charging via a USB Type-C cable (included), 1500mAh, 3.7V lithium polymer battery
Operating temperature range,°C −10… +60 (14… 140)
Operating humidity range, % 20…70

Dimensions and weights

Gross weight
0.6 kg
Package width
16.5 cm
Package height
5.5 cm
Package length
24 cm

Product codes

EAN
5905555016962
