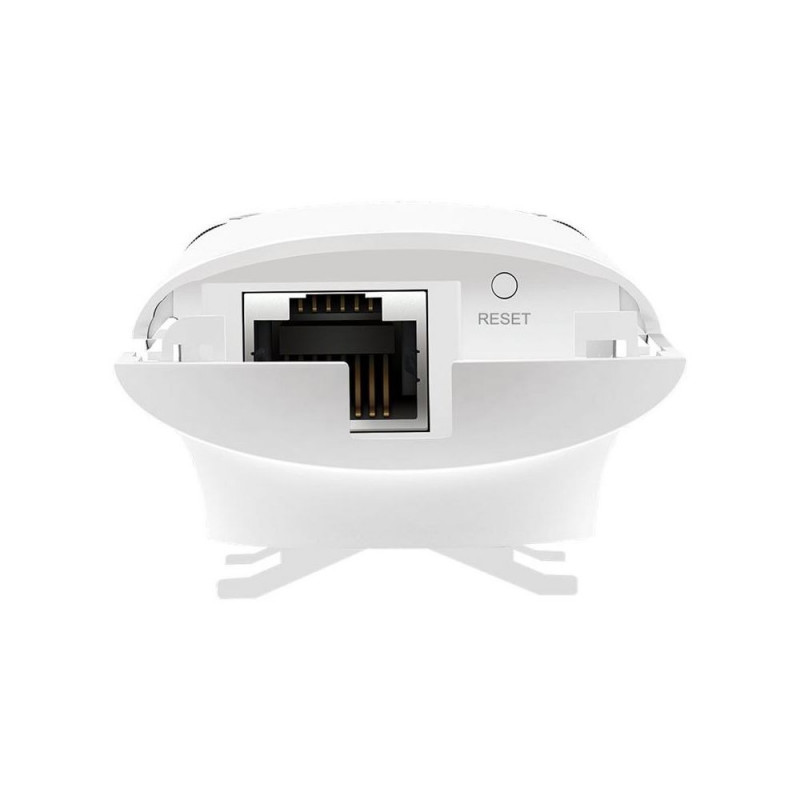

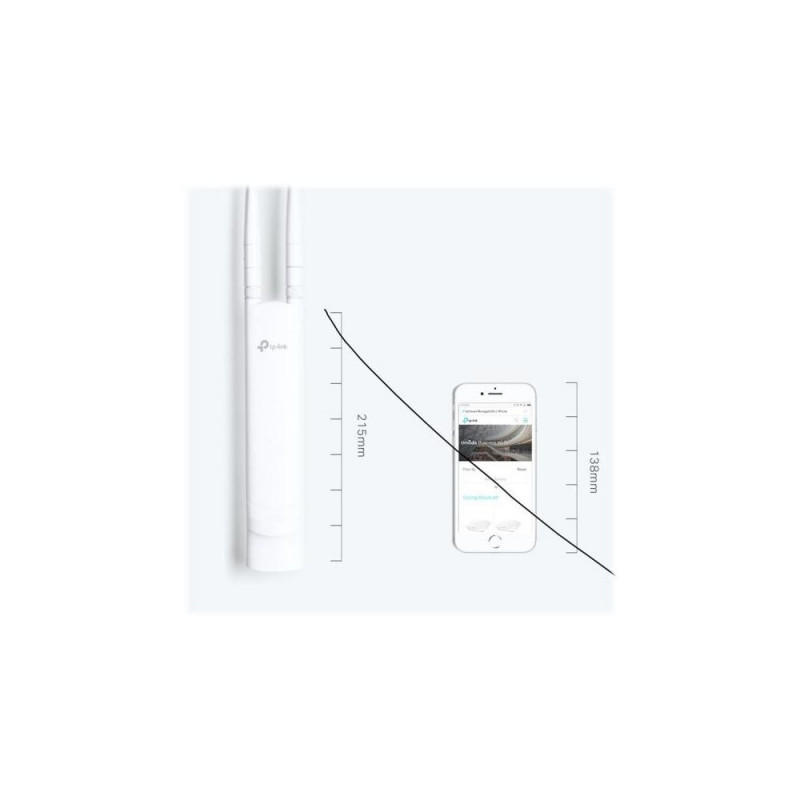

Wireless Access Point - Omada 300mbps Wireless N Outdoor Access Point

Main info

The product supports 8 SSIDs and has a built-in firewall for network security. It operates in temperatures ranging from -30°C to 65°C and meets various sustainability standards including CE, FCC, and RoHS certifications.

Product has been archived

Wireless Access Point - Omada 300mbps Wireless N Outdoor Access Point

The Omada 300mbps Wireless N Outdoor Access Point is a wireless networking device designed for outdoor use. It supports multiple SSIDs, WPA2 encryption, and has a built-in firewall for secure network management.

Key Features:
  • Supports up to 8 SSIDs
  • WPA2 encryption for secure data transmission
  • Remote authentication via RADIUS support
  • Web-based management interface and syslog logging

Features
5 GHz No
Maximum data transfer rate 300 Mbit/s
2.4 GHz Yes
Frequency band 2.4 GHz
Ethernet LAN data rates 100, 10
Networking standards IEEE 802.11g, IEEE 802.11n, IEEE 802.11b
Transmitting power (CE) 20 dBm
6 GHz No
Transmitting power (FCC) 22 dBm
Wireless isolation Yes
Quality of Service (QoS) support Yes
Automatic channel selection Yes
Rate limiting Yes
Maximum data transfer rate (2.4 GHz) 300 Mbit/s
Wi-Fi Multimedia (WMM)/(WME) Yes
Virtual LAN features VLAN mapping, Tagged VLAN
VLAN support Yes
Design
Reset button Yes
LED indicators Power
Product colour White
International Protection (IP) code IP65
Placement Pole, Wall
Power
Power consumption (max) 3.12 W
Power over Ethernet (PoE) Yes
Output current 0.6 A
Output voltage 24 V
Power over Ethernet (PoE) type supported Passive PoE
Security
Security algorithms WPA2-Enterprise, WPA-Enterprise, WPA2-PSK, WPA-PSK
MAC address filtering Yes
Number of SSID supported 8
Service Set Identifier (SSID) features Multiple SSIDs
Access Control List (ACL) Yes
Remote Authentication Dial-In User Service (RADIUS) Yes
Operational conditions
Storage relative humidity (H-H) 5 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) -30 - 65 °C
Operating relative humidity (H-H) 10 - 90%
Management features
Web-based management Yes
Syslog Yes
Weight & dimensions
Height 27 mm
Width 216 mm
Depth 46 mm
Packaging data
Package depth 270 mm
Package weight 620 g
Package width 140 mm
Package height 100 mm
Package type Box
Packaging content
Cables included AC
PoE adapter included Yes
Number of products included 1 pc(s)
Mounting kit Yes
Antenna included Yes
Protocols
Management protocols HTTP/HTTPS, SNMP, Telnet
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Antenna
Antenna type External
Antennas quantity 2
Antenna features Detachable antenna
Antenna gain level (max) 3 dBi
Antenna direction type Omni-directional
Sustainability
Sustainability certificates CE, Federal Communications Commission (FCC), RoHS
Sustainability compliance Yes
Performance

Country CN
Width 270 mm
Height 100 mm
Length 142 mm
Product Weight 500 g

Dimensions and weights

Gross weight
0.61 kg
Package width
13.5 cm
Package height
27 cm
Package length
17.5 cm

Product codes

EAN
6935364097752
Manufacturer code
EAP110-Outdoor
