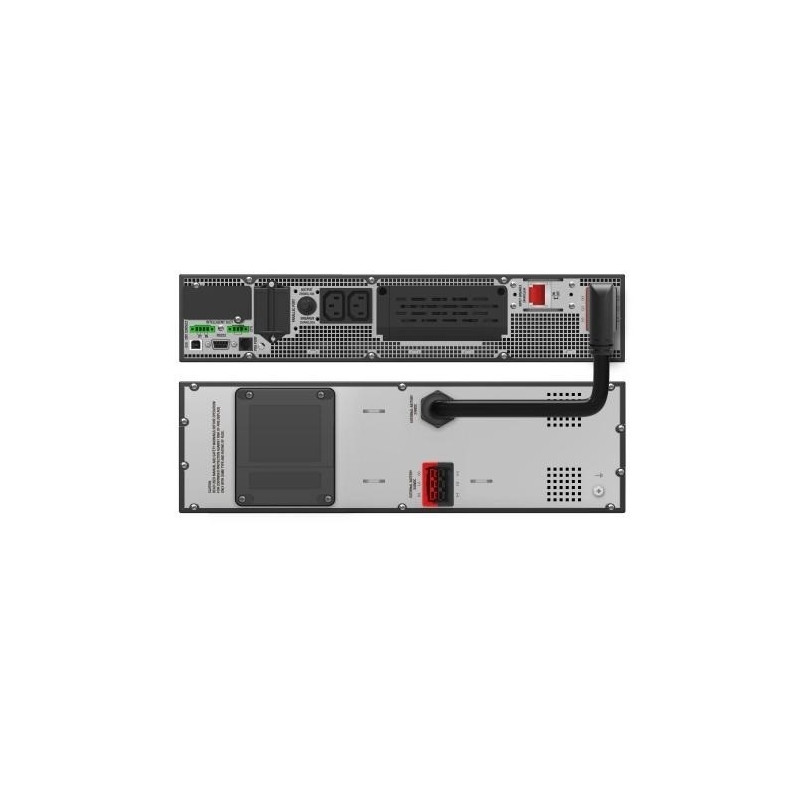

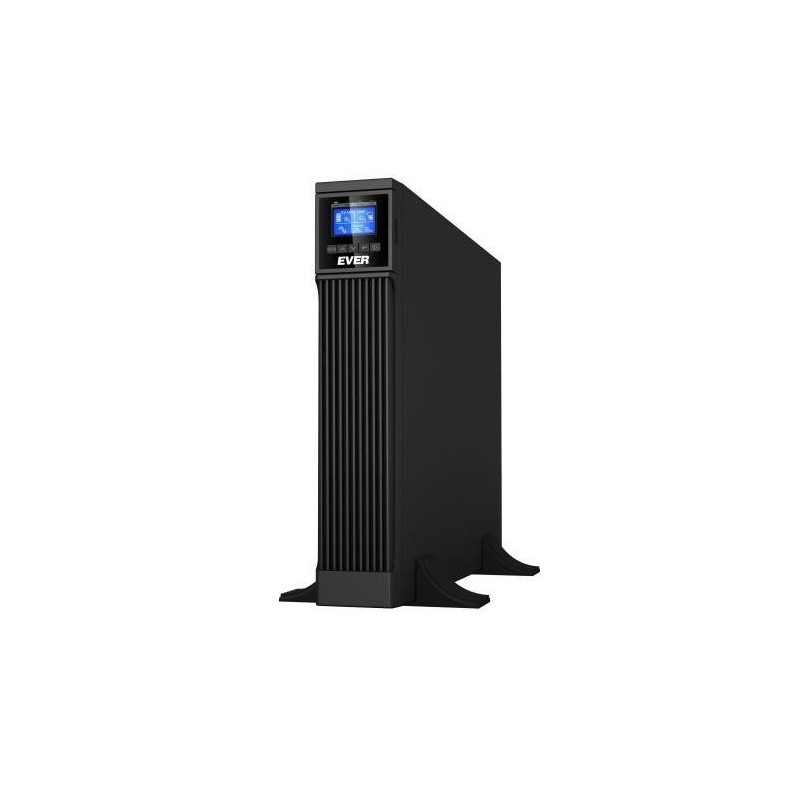

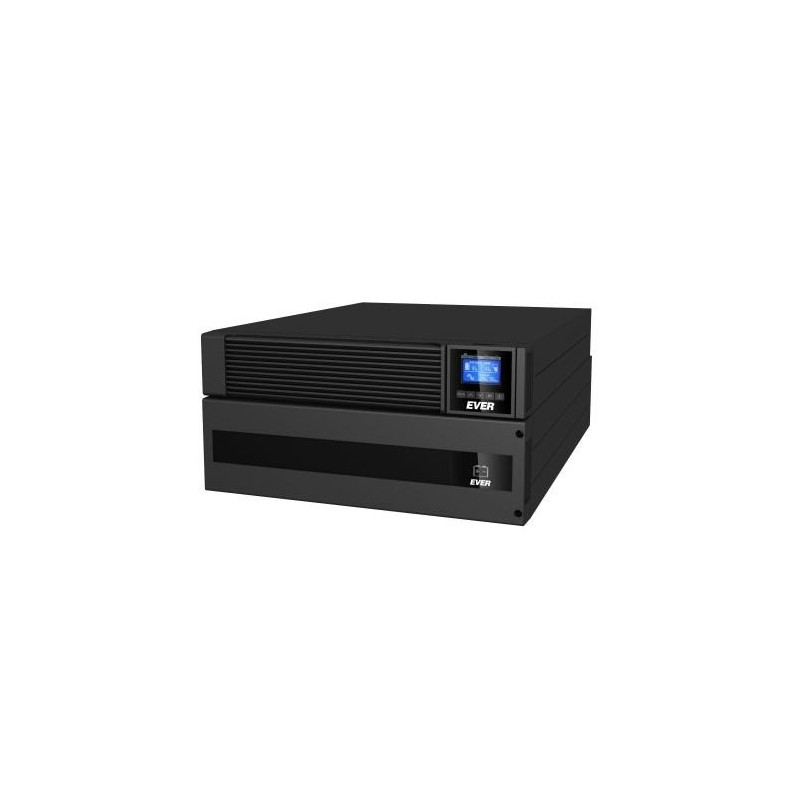

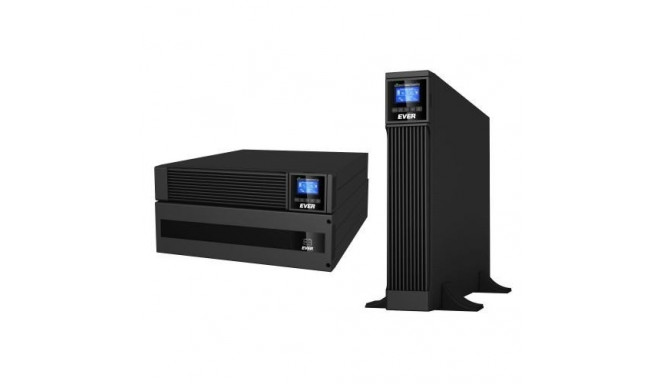

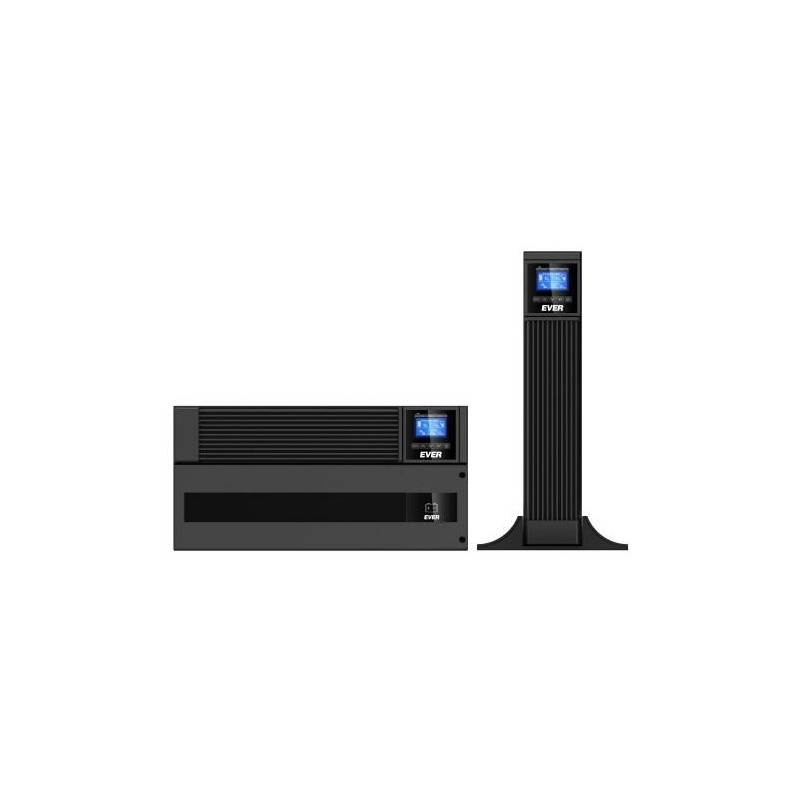

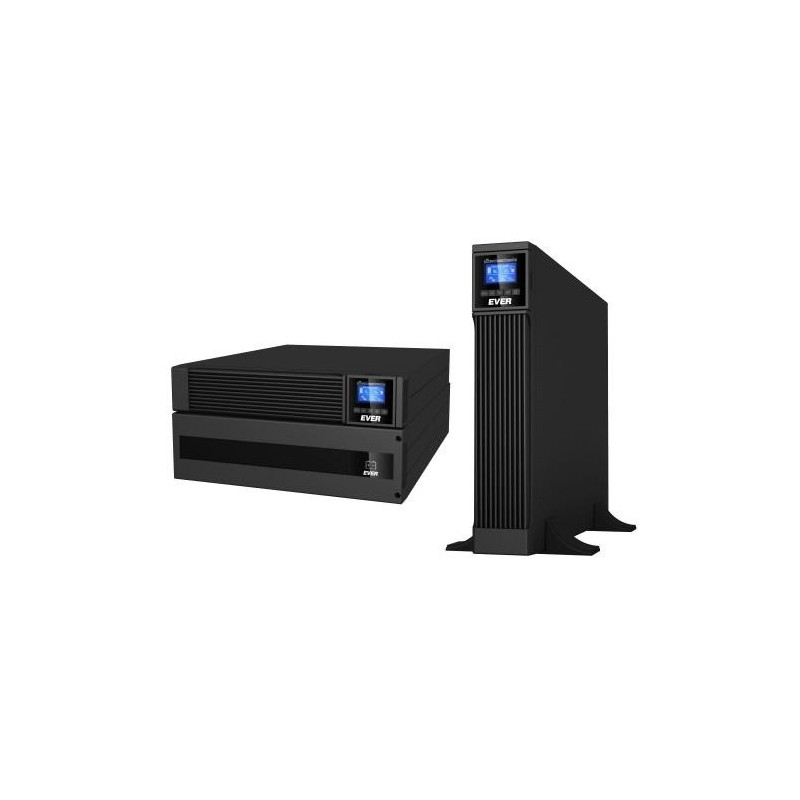

UPS POWERLINE RT Plus 6kVa T/PWPLRT-116K00/0

Main info

Product has been archived

POWERLINE RT PLUS 6 - 10 kVA on uusim UPS-seeria, mis on ehitatud topoloogiasse topeltkonversioon (VFI), kus väljundaktiivvõimsus jõuab näilise võimsuse väärtuseni. Need toiteallikad on mõeldud serveritele, telekommunikatsiooniseadmetele, andmekeskustele ja IT-infrastruktuurile, et tagada ühendatud seadmete kaitse toitevõrgus esinevate probleemide, nagu toitekatkestused, pingetõusud ja langused, ülepinged ja harmoonilised moonutused vastu.

Toiteallikad on varustatud ulatusliku kommunikatsioonisüsteemiga halduskaardi, RS232 kommunikatsiooniliidese ja USB HID abil, mis võimaldab UPS-il töötada koos teiste seadmetega, ilma et oleks vaja tarkvara installida. Tänu sisseehitatud potentsiaalivabadele kontaktidele (1 - sisend, 1 - väljund) on võimalik toiteallika kaugjuhtimine ja selle konkreetsete tööolekute signaalimine. POWERLINE RT PLUS 6-10 kVA toiteallikatel puuduvad siseakud - vähemalt 1 aku moodul on vajalik hädaolukorra toitevaru tagamiseks.

OMADUSED

  • Väljundaktiivvõimsus võrdne näilise võimsusega (PF = 1)!
  • Riiul / tornkorpusega graafilise LCD-ekraaniga
  • ECO-režiim
  • EPO (hädaolukorra toite väljalülitamine)
  • Võimalus juhtida väljundpesasid (1 sektsioon - saadaval pärast ühendamist PDU-ga)
  • Aku tühjenemisel võimaldab Start-on-battery funktsioon UPS-i käivitada
  • Laadimisvoolu saab konfigureerida LCD-tasemelt (1 A kuni 4 A)
  • Väljundpesade arvu suurendamise võimalus, ühendades PDU-ga
  • Saab ühendada kuni 6 aku moodulit
  • Töötab paralleelselt kuni 3 ühikut

KOMMUNIKATSIOON

  • Potentsiaalivabad kontaktid standardina (sisend (1), väljund (1))
  • USB HID, RS232 kommunikatsiooniliides
  • Võrgukaart haldab SNMP-d

Apparent power 6 kVA
Active power 6000
Number of phases input 1 (230V)
Chassis type Tower
Filters / protection Thermal
Filters / protection Overload
Filters / protection Surge
Filters / protection Circuit
Software PowerSoft Professional
Input power ports Input terminal
Output power ports 2 x IEC-C13
Output power ports Output terminals
I/O connectors 1 x USB (Type B)
I/O connectors 1 x RS-232 (COM)
Color Black
Dimensions 86 (2U) x 438 x 573mm
Weight 13.3
UPS Architecture on-line

Dimensions and weights

Gross weight
16.7 kg
Package width
76.5 cm
Package height
58 cm
Package length
22.5 cm

Product codes

EAN
5907683605995
Manufacturer code
AUEVEO3UPLRTP06
