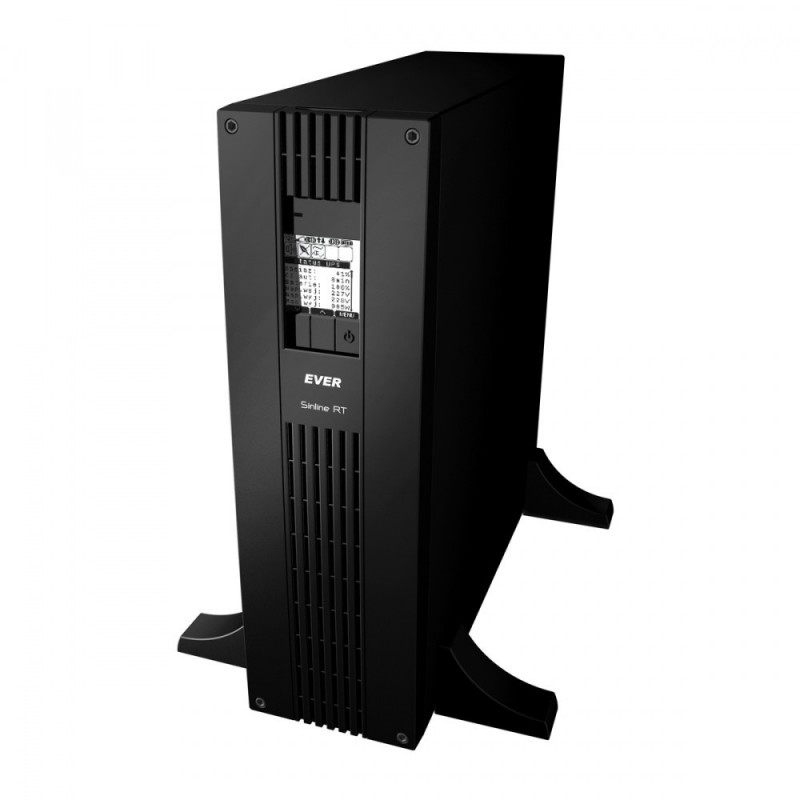

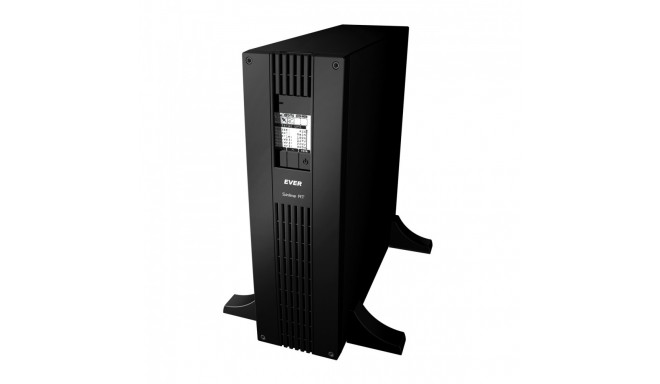

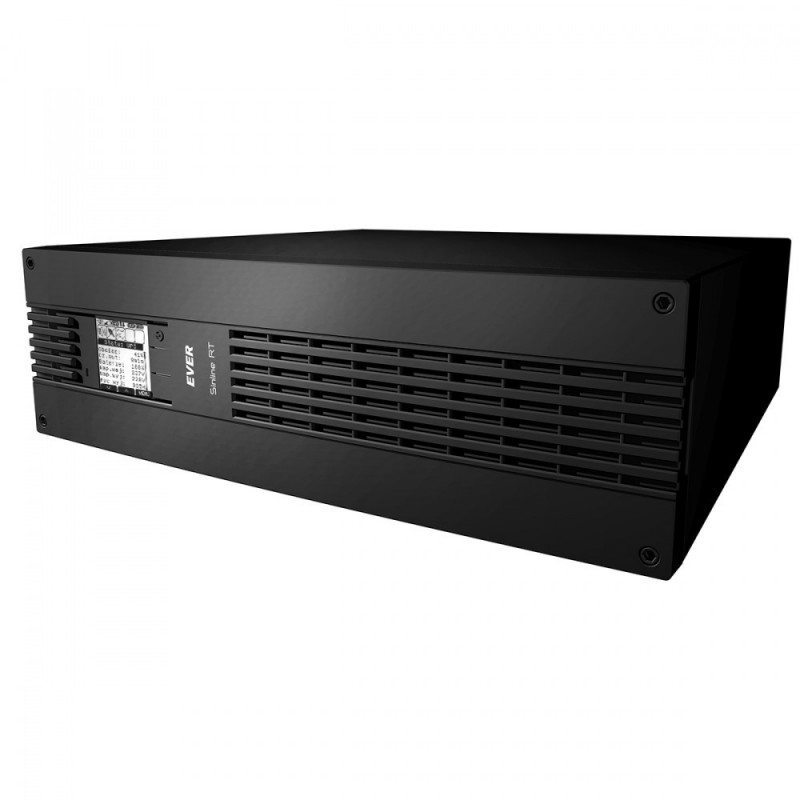

UPS SINLINE RT XL 1650VA

Main info

Product has been archived

SINLINE RT XL is the latest series of advanced power supplies in which the output active power can attain apparent power. These power supplies are designed for servers, small computer networks and workstations as well as other electrical, electronic and IT equipment. In addition, this series has a LAN filter (1Gbit / s), the ability to manage the output sockets, connect an additional battery module and replace the battery by the user. The LCD graphic display gives the user complete control over the device.

Thanks to the optional power supply in the RS232 / RS485 communication interface with MODBUS protocol and the potential-free output and control inputs, it is possible to integrate the device into the automation systems. The Rack / Tower housing makes it easy to change the way you install the unit.

The built-in automatic voltage regulation (AVR) allows the input voltage to be adjusted to acceptable levels without consuming battery power. The integrated battery charging system with thermal compensation additionally protects internal batteries, extending their service life.

Power supplies have a built-in communication system via a standard network interface (SNMPv1, HTTP) and a USB HID interface that allows the UPS to work with other devices without installing software. In addition, this series allows you to start the device from the battery without having to connect the UPS to the mains supply. "Cold start". Optionally, the UPS has the Emergency Power Off (EPO) function.


Apparent power 1650 VA
Active power 1650
UPS Architecture line-interactive
Number of phases input 1 (230V)
No. of batteries 4
Voltage 12
Battery capacity 7
Hold-up time (maks) 3
Backup time (100% load) 3
Charging time 4
Chassis type Rack
Chassis type Tower
Filters / protection Data line
Filters / protection Circuit
Filters / protection Surge
Software PowerSoft monitoring and management software

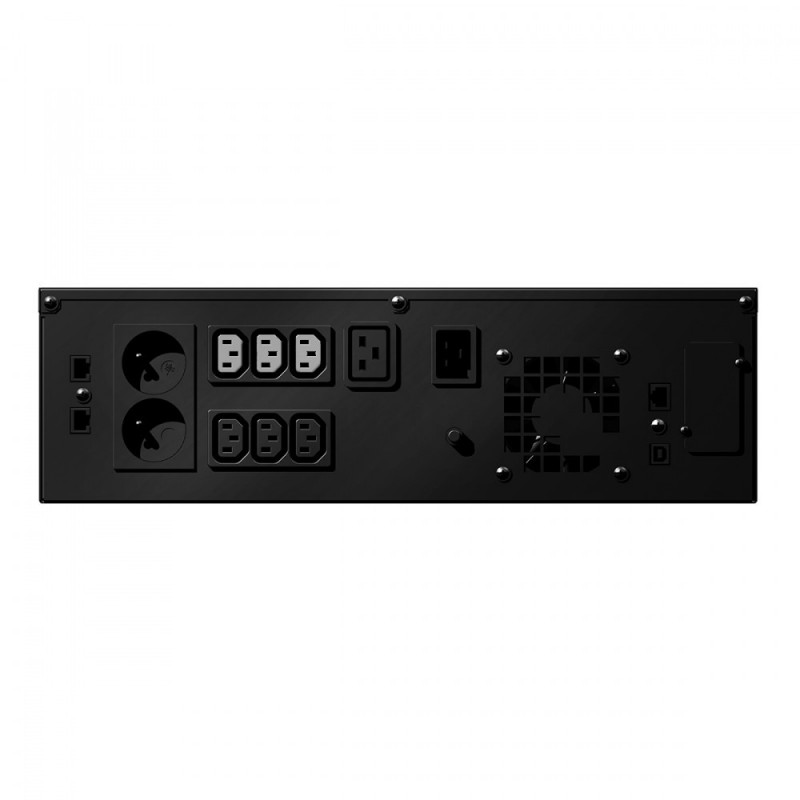

Input power ports IEC-C20
Output power ports 6 x IEC-C13
Output power ports 1 x IEC-C19
Connectors RJ-45
Connectors SmartSlot
Connectors 1 x USB (Typ B)
Environment requirements - Working temperature: 0 - 40 degrees Celsius- Storage temperature: 0 to 45 degrees C- Operating humidity: 20 - 80% (non-condensing)- Storage Ambient Humidity: 20 - 95% (non-condensing)- Height up to 1000 m
Color Black
Dimensions - Dimensions Rack: 132 x 440 x 460 mm (mounting kit to be purchased separately)- Tower dimensions (+ pedestal): 450 x 304 x 460 mm
Weight 26
Warranty - Door-to-door service- 3 year warranty on UPS electronics- 2 year battery warranty- Repair work done in 2 working days
Output power ports 2 x C/E type
Designation
Special functions - Output power equal to apparent power (PF = 1)- Rack / Tower mounting- Voltage regulation system AVR (boost and lower)- Graphical LCD display- Battery charging system with thermal compensation- Predictive hold time- Ability to manage output sockets- Cold
Other features - Degree of protection: IP20- Working environment: office / industrial areas with low pollution levels- Cooling: internal fans- Input: 230V 50Hz (178 ~ 281V AC 45/55 Hz)- Output: 230V 50Hz (195 ~ 253V AC 50 Hz)- Maintenance (80/50%): 4/6 minutes

Dimensions and weights

Gross weight
32 kg
Package width
55 cm
Package height
55 cm
Package length
25 cm

Product codes

EAN
5907683603786
Manufacturer code
AUEVEL2USIRTXL2
