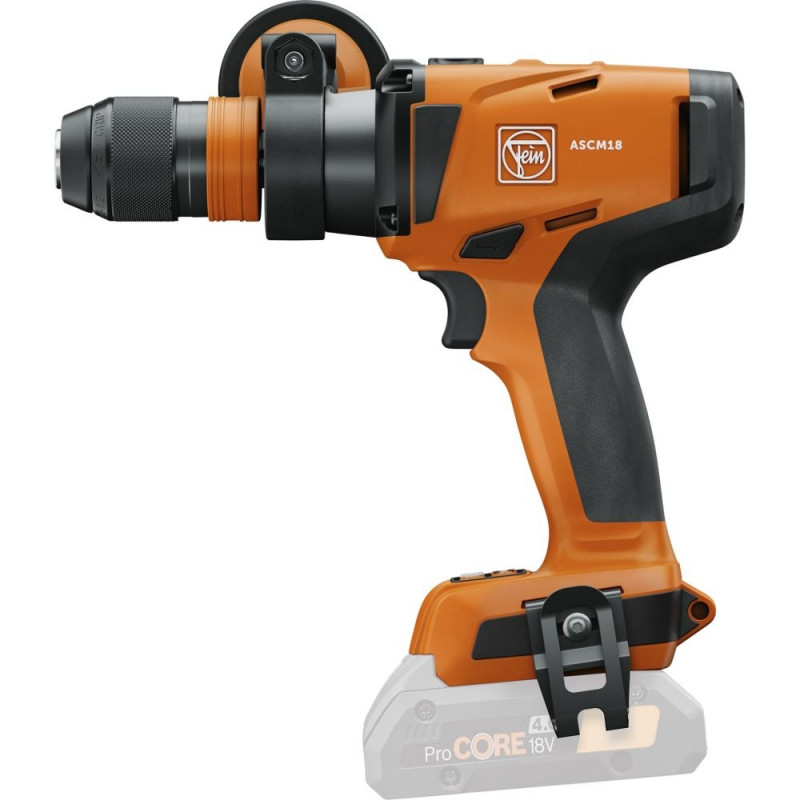

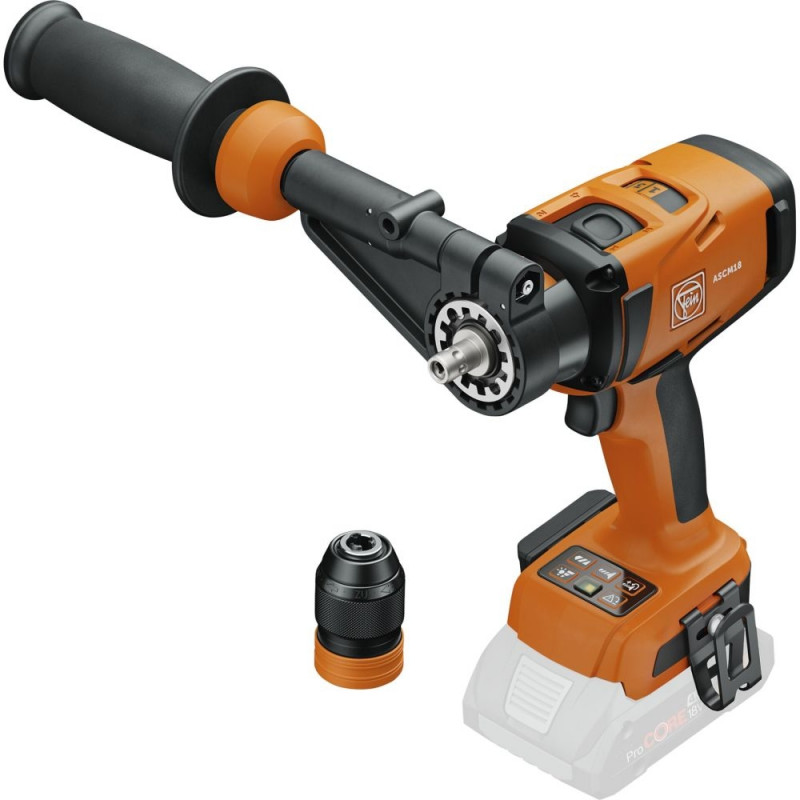

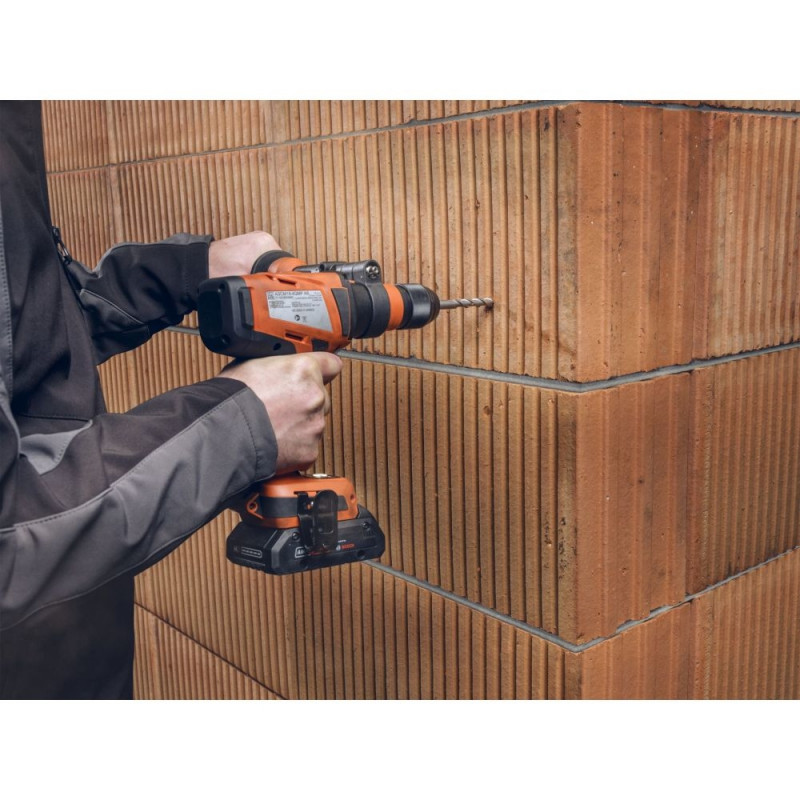

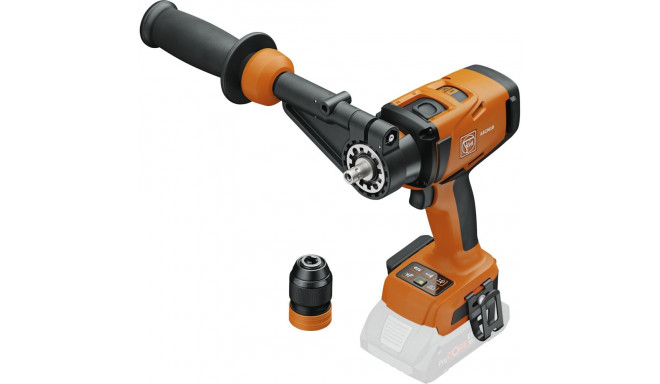

Fein ASCM18-4QMP N00 Cordless Combi Drill

Addional discount of 10%
will be applied in shopping cart
(min. 5€ purchase)
459 €

Monthly payment starting from 15,64 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 4-7 working days

Free delivery

14 14 days return policy when purchasing online

Fein ASCM18-4QMP N00 cordless impact drill (without battery and without charger)

With brushless motor and QuickIN interface, uncompromising performance for tapping up to M14 and drilling with carbide hole saws up to 80 mm.

Features:

  • 4-speed all-metal gearbox with speeds up to 4000 rev/min for optimum cutting speeds in metal for every bore from 1.5 to 80 mm
  • The widest range of applications with the FEIN QuickIN system for multifunctional use in drilling, core drilling, tapping, countersinking and screwdriving
  • Very safe working.Kickback monitoring (kickback) stops the machine
  • QuickIN attachments can be changed between metal and wood applications in seconds with just one machine
  • Switchable impact mechanism for drilling in stone and masonry up to 13 mm
  • More control through extendable additional handle
  • The brushless, powerful FEIN PowerDrive motor, with up to 30% higher efficiency, enables a longer service life
  • High torques up to 130 Nm
  • QuickIN solid metal drill chuck (120 Nm) with carbide-tipped jaws and high clamping forces
  • Electronic torque adjustment (15+1)
  • Intuitive control panel with dimmable LED for perfect illumination of the workplace depending on the material
  • Ergonomic and flexible handling thanks to side-mounted bit and belt holders
  • Screwed 10 x 400 mm screws without pre-drilling
  • AMPShare interface allows 1 400 screw connections (5 x 40 mm in wood) per battery charge (ProCORE 4 Ah)
  • Comprehensive user protection through restart protection, electronic overload protection and brake
  • The innovative adjustment function allows screwing in wood at reduced speed for perfect results
  • Compatible with Bosch Professional 18 V batteries since 2008 and AMPShare batteries
  • Mobile working with the L-BOXX System

Technical data:

  • Battery voltage: 18 V
  • Battery compatibility: Li-ion / ProCore
  • Battery Interface: 18 V AMP
  • Motor: brushless
  • Transmission: 4-speed
  • Accessory interface: QuickIN MAX
  • Idling speed: 430 / 850 / 2000 / 4000 U/min
  • Impact rate: 6450 / 12750 / 30000 / 60000 U/min
  • Maximum torque: 130 (70 / 50) Nm
  • Torque levels: 15 + 1
  • Chuck span: 1.5 - 13 mm
  • Screws: 10 x 400 mm
  • Drill-O steel twist drill: 13 mm
  • Drill Steel Core Drill: 30 mm
  • Drill-O steel hole saws: 80 mm
  • Drill wood: 60 mm
  • Drilling stone: 13 mm
  • Tapping: M14
  • Weight: 1.4 kg

Scope of delivery:

  • 1x QuickIN drill chuck (120 Nm)
  • 1x belt clip
  • 1x Bitgarage
  • 1x telescopic handle
  • 1x plastic tool case (L-BOXX 136)

Type Hammer Drill Driver
Operating Mode Rechargeable Battery
Tool Mounting System 1/4" Internal Hex
Drill Chuck Clamping Range min./max. (mm) 1,5 / 13
Sound Pressure (dB) 93,9
Max. No-Load Speed 1st Gear (min-1) 430
Max. No-Load Speed 2nd Gear (min-1) 850
Max. No-Load Speed 3nd Gear (min-1) 2000
Max. Idle Speed 4th Gear (min-1) 4000
Max. Idle Speed (min-1) 4000
Max. Idle Stroke Rate 60000
Torque soft (Nm) 70
Torque hard (Nm) 130
Maximal Torque (Nm) 106 - 200
Torque Settings 15 + 1
Max. Drilling Capacity in Wood (mm) 60
Max. Drilling Capacity in Concrete (mm) 13
Battery Voltage (V) 18
Type of Battery / Rechargeable Battery Lithium-Ion
Rechargeable Batteries Included in Delivery No
Colour orange / schwarz
Max. Torque (Nm) 130
Max. Drilling Capacity in Steel (mm) 13

Dimensions and weights

Gross weight
5.9 kg
Package width
358 cm

Product codes

EAN
4014586900261
Manufacturer code
71161661000
