Home page » Electronics»Security systems»Network video recorders»IP Network recorder 8 ch NVR2108HS-I

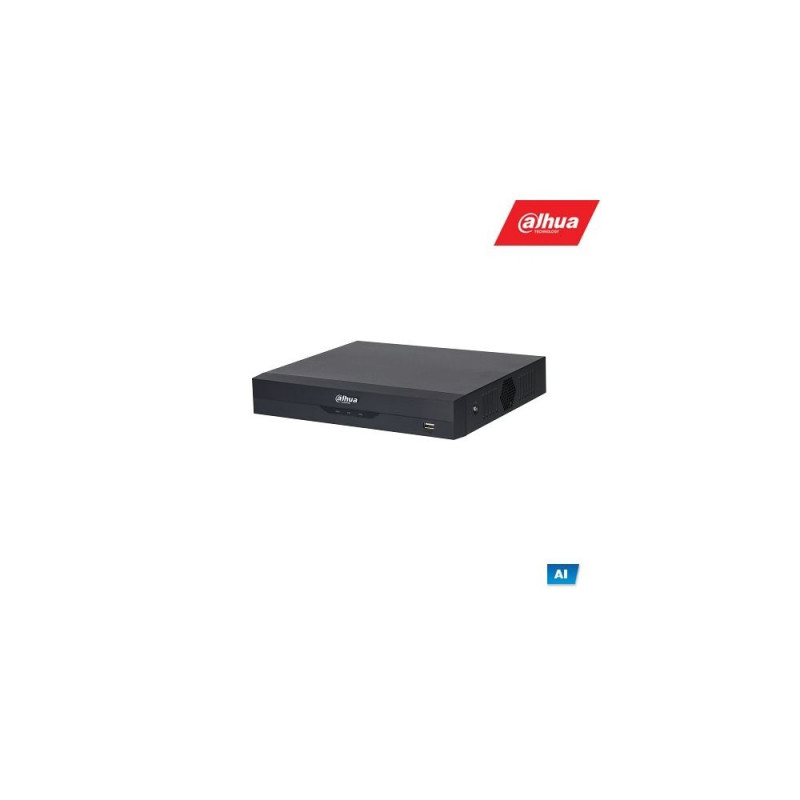

IP Network recorder 8 ch NVR2108HS-I

165,99 €

Monthly payment starting from 5,66 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warning: Last items in stock!

Add to cart

Delivery in 4-7 working days

Free delivery

14 14 days return policy when purchasing online

System
Main Processor Industrial-grade embedded processor
Operating System Embedded Linux
Operation Interface Web/operating in local GUI
Video
Access Channel 8 channels
Network Bandwidth 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding
Resolution 8M/5M/4M/3M/2M/720p/D1
Decoding Capability 1-channel 8MP@30fps 4-channel 1080p@30fps
Video Output 1 VGA/1 HDMI simultaneous video output by default, the maximum resolution of HDMI is 4K
Multi-screen Display 1/4/8/9
Third Party Camera Access Onvif, RTSP
Compression
Video H.264/H.265/Smart H.264+/Smart H.265+/MJPEG
Audio PCM/G711A/G711U/G26/AAC
Network
Network Protocol HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS
Mobile Phone Access Android, iOS
Interoperability ONVIF (profile T/profile S/profile G), CGI, SDK
Browser Chrome, IE9 or above, Firefox
Record Playback
Multi-channel Playback Up to 8 channels playback
Record Mode Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording
Storage Local HDD and network
Backup USB device
Playback Function 1. Play, pause, stop, fast forward, fast backward, rewind, play by frame 2. Full screen, backup (cut/file), partially enlarge, audio on/off
SMD Plus
Performance 4 channels
AI Search Search by target classification (human, vehicle)
Face Recognition
Performance Max 8 face pictures/sec processing
1 channel video stream face recognition
Stranger Mode Detect strangers' faces (not in device's face database). Similarity threshold can be set manually
AI Search Up to 8 target face images search at same time, similarity threshold can be set for each target face image
Database Management Up to 10 face databases with 5,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture
Database Application Each database can be applied to video channels independently
Trigger Events Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.
Alarm Linkage Video recording, snapshot, log, preset, tour
Perimeter Protection
Performance 2 channels
Object classification Human/Vehicle secondary recognition for tripwire and intrusion
AI Search Search by target classification (human, vehicle)
Alarm
General Alarm Motion detection, privacy masking, video loss, PIR alarm, IPC alarm
Anomaly Alarm Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly
Alarm Linkage Video recording, snapshot, log, preset, tour
External Port
HDD 1 SATA port, up to 8 TB. The maximum HDD capacity varies with environment temperature
USB 1 front USB 2.0 port, 1 rear USB 2.0 port
HDMI 1
VGA 1
Network 1 RJ–45 port (10/100 Mbps)
RCA Input 1
RCA Output 1
General Parameter
Power Supply DC 12V, 1.5A
Power Consumption Total output of NVR is ? 10W (without HDD)
Net Weight 0.81 kg (1.79 lb)
Gross weight 1.38 kg (3.04 lb)
Product Dimensions 260 mm × 232.7 mm × 47.6 mm (W × L × H)
10.24 inch × 9.16 inch × 1.87 inch (W × L × H)
Package Dimensions 89 mm × 333 mm × 315 mm (W × L × H)
3.50 inch × 13.11 inch × 12.40 inch (W × L × H)
Operating Temperature -10°C to +55°C (+14°F to +113°F)
Storage Temperature 0°C to +40°C (+32°F to +104°F)
Operating Humidity 10%–93%
Storage Humidity 30%–85%
Operating Altitude 3000 m (9843 ft)
Installation Desktop mounting
Certifications CE/FCC

Product codes

EAN
6923172516404
