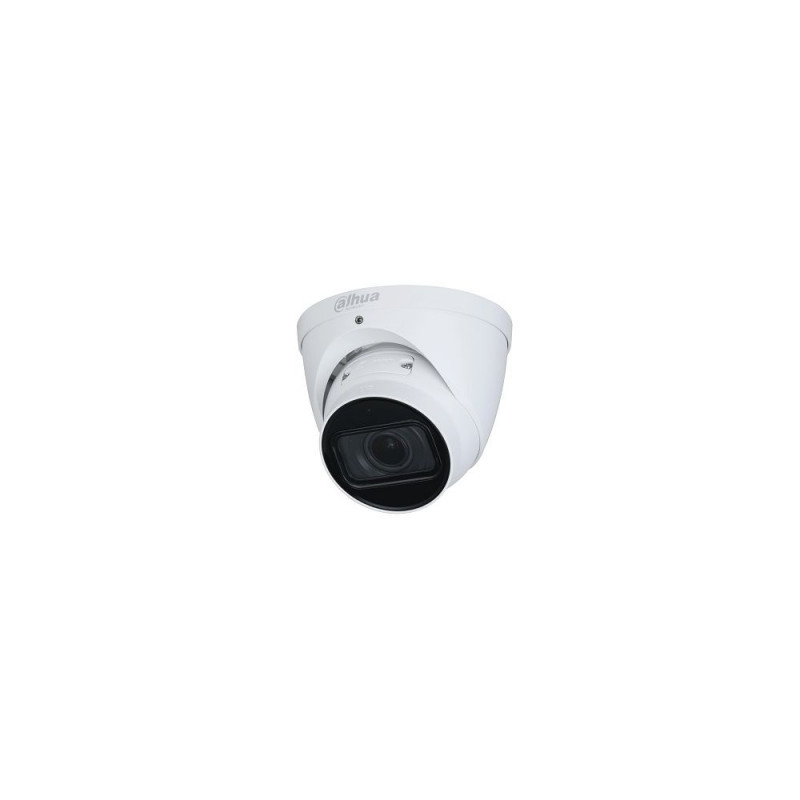

IP network camera 4MP 2K IPC-HDW5442T-ZE

FREE SHIPPING
WITHIN ESTONIA!

469 €

Monthly payment starting from 15,99 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 4-7 working days

Free delivery

14 14 days return policy when purchasing online

Camera
Image Sensor 1/1.8”4Megapixel progressive CMOS
Max. Resolution 2688 (H) × 1520 (V)
ROM 128 MB
RAM 1GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.003Lux@F1.8
S/N Ratio >56 dB
Illumination Distance 40 m (131.2 ft) (IR LED)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Motorized vari-focal
Mount Type f14
Focal Length 2.7 mm-12 mm
Max. Aperture F1.8
Field of View Horizontal: 114°–47°
Vertical: 62°–26°
Diagonal: 136°–54°
Iris Type Auto
Close Focus Distance 1.2 m (3.9 ft)
DORI Distance Lens Detect Observe Recognize Identify
W 58 m (190.3 ft) 23 m (75.5 ft) 12 m (39.4 ft) 6 m (19.7 ft)
T 131 m (429.8 ft) 52 m (170.6 ft) 26 m (85.3 ft) 13 m (42.7 ft)
Smart Event
IVS Abandoned object; missing object
Heat Map Yes
Professional, intelligent
IVS (Perimeter Protection) Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection
Face Detection Face detection; track; optimization; snapshot; report high quality picture; face enhancement; face exposure; face attribute extract, 6 attributes and 8 expressions: Gender, age, glasses, expressions (anger, calm, happiness, sadness, disgust, surprise, confusion and fear), mask, beard; face matting setting: face, single inch photo; three snapshot methods: real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting
People Counting Support the counting of enter number, leave number, and pass number, and displaying and outputting yearly/monthly/weekly/daily reports.
Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm.
Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H265+/H264+
Video Frame Rate Main stream: 2688 × 1520 (1 fps–25/30 fps)
1920 × 1080 (1 fps–50/60 fps)
Sub stream: D1 (1 fps–50/60 fps)
Third stream: 1080p (1 fps–25/30 fps)
Stream Capability 3 streams
Resolution 2688 × 1520; 2560 × 1440; 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–8192 kbps
H.265: 19 kbps–8192 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 140 dB
Scene Self-adaptation Yes
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Electronic Image Stabilization (EIS) Yes
Smart Illumination Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; G.726; AAC; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; defocus detection; scene changing; tripwire; intrusion; abandoned object; missing object; fast moving; parking detection; loitering detection; people gathering; audio detection; people counting; face detection; voltage detection; people counting in area; stay alarm; people No. exception detection, queue management
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
User/Host 20 (Total bandwidth: 80 M)
Storage FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS
Browser IE: IE8 and later
Chrome
Firefox
Safari: Safari 12 and later
Management Software Smart PSS, DSS, DMSS
Mobile Phone IOS; Android
Certification
Certification CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power
Power Supply 12V DC (±30%)/PoE (802.3af)
Power Consumption <7.5W
Environment
Operating Conditions –30°C to +60°C (–22°F to +140°F)/Less than 95% RH
Strorage Conditions –40°C to +60°C (–40°F to +140°F)
Protection Grade IP67
Structure
Casing Inner core: Metal
Cover: Metal
Decoration ring: Plastic Decoration ring
Dimensions F122.0 mm × 108.3 mm (F4.8" × 4.3")
Net Weight 740 g (1.6 lb)
Gross Weight 910 g (2.0 lb)
