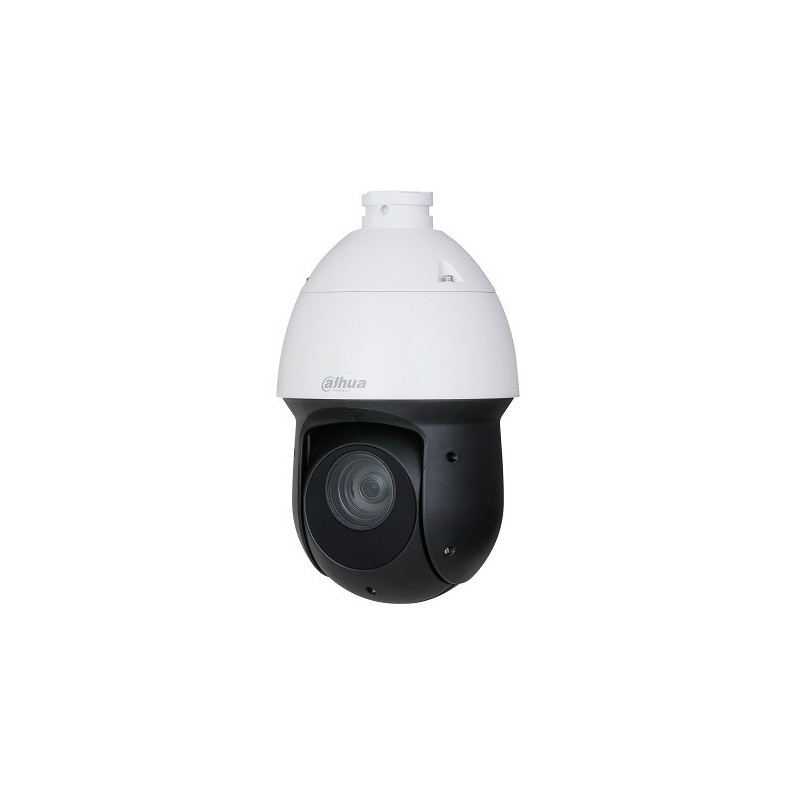

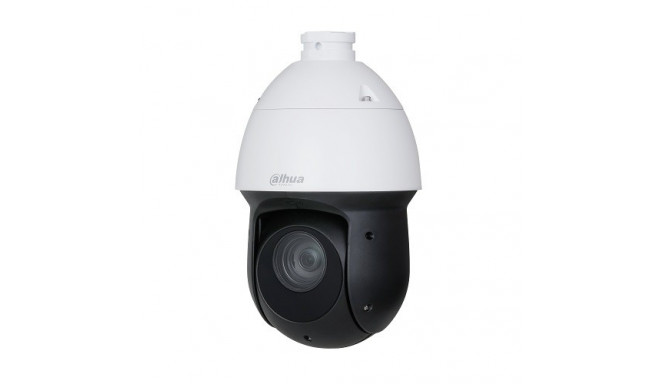

8 Megapixel PTZ cam SD49825XB-HNR

1 019 €

Monthly payment starting from 34,73 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 4-7 working days

Free delivery

14 14 days return policy when purchasing online

Camera
Image Sensor 1/2.8" CMOS
Pixel 8 MP
Max. Resolution 3840 (H) × 2160 (V)
ROM 4 GB
RAM 1 GB
Electronic Shutter Speed 1/1 s–1/30,000 s
Min. Illumination Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux (IR light on)
Illumination Distance 100 m (328.08 ft) (IR)
Illuminator On/Off Control Zoom Prio; Manual; Smart IR; Off
Illuminator Number 4 (IR)
Lens
Focal Length 5 mm–125 mm
Max. Aperture F1.6–F3.6
Field of View H: 53.1°–3.4°; V: 30.4°–1.9°; D: 59.3°–3.9°
Optical Zoom 25×
Focus Control Auto; Semi-auto; Manual
Close Focus Distance 0.1 m–1.5 m (0.33 ft–4.92 ft)
Iris Control Auto; Manual
DORI Distance Detect Observe Recognize Identify
2,161.4 m (7,091.21 ft) 864.6 m (2,836.61 ft) 432.3 m (1,418.31 ft) 216.1 m (708.99 ft)
PTZ
Pan/Tilt Range Pan: 0° to 360° endless
Tilt: –15° to +90°, auto flip 180°
Manual Control Speed Pan: 0.1°–200°/s
Tilt: 0.1°–120°/s
Preset Speed Pan: 240°/s; Tilt: 200°/s
Preset 300
Tour 8 (up to 32 presets per tour)
Pattern 5
Scan 5
Power-off Memory Yes
Idle Motion Preset; Tour; Pattern; Scan
PTZ Protocol DH-SD
Pelco-P/D (auto recognition)
Intelligence
IVS (Perimeter Protection) Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.
Face Detection Yes
SMD Yes
Video
Video Compression Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; H.264H; MJPEG (Sub Stream 1)
Streaming Capability 3 streams
Resolution 4K (3840 × 2160); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Video Frame Rate Main stream: 4K/4MP/1080p/1.3M/720p (1–25/30 fps) Sub stream 1: D1/CIF (1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p/CIF (1–25/30 fps)
Bit Rate Control CBR; VBR
Video Bit Rate H.264: 3328 kbps–8192 kbps
H.265: 1280 kbps–8192 kbps
Day/Night Auto (ICR); Color; B/W
BLC Yes
WDR Yes
HLC Yes
White Balance Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Gain Control Auto; Manual
Noise Reduction 2D NR; 3D NR
Motion Detection Yes
Region of Interest (RoI) Yes
Image Stabilization EIS
Defog Electronic defog
Digital Zoom 16×
Image Rotation 180°
Privacy Masking Up to 24 areas can be set, with up to 8 areas in the same view
S/N Ratio ? 55 dB
Audio
Audio Compression G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G.729; G.723
Network
Network Port RJ-45 (10/100 Base-T)
Network Protocol HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; TCP; RTMP
Interoperability ONVIF Profile S&G&T; CGI
User/Host 20 (total bandwidth: 64 MB)
Storage FTP; Micro SD card (256 GB)
Browser IE 7 and later versions
Chrome 42 and earlier versions
Firefox 52 and earlier versions
Safari
Management Software Smart PSS; DSS; DMSS; Easy4ip; IVSS; Player; Configtool; NVR; Smart Player
Mobile Client iOS; Android; iPhone; iPad
Certification
Certifications CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No. 60950-1
Port
Audio Input 1 channel
Audio Output 1 channel
Two-way Audio Yes
Alarm Input 2 channel, digital input (0–5 VDC)
Alarm Output 1 channel
Alarm Linkage Capture; preset; tour; pattern; recordings on SD card; alarm digital input; send email
Alarm Event Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection
Power
Power Supply 12 VDC, 3 A (± 10%)
PoE+ (802.3at)
Power Consumption Basic: 9.8 W
Max.: 20 W (illuminator)
Environment
Operating Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity ? 95%
Protection IP66; TVS 6000 V lightning proof; surge protection; voltage transient protection
Structure
Product Dimensions 269.9 mm × ?160 mm (10.62" × ?6.30")
Net Weight 3.0 kg (6.61 lb)
Gross Weight 4.3 kg (9.48 lb)

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 159,99 €
  • Additional warranty (2 years) - 99,99 €
  • Insurance (1 year) - 199,99 €
  • Insurance (2 years) - 269,99 €

Choose a suitable extended warranty and insurance in checkout..

Product codes

EAN
6923172529770
