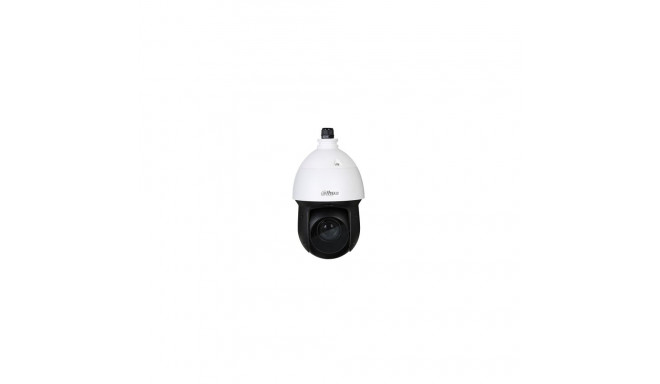

HD-CVI PTZ cam. SD49225-HC-LA

FREE SHIPPING
WITHIN ESTONIA!

519 €

Monthly payment starting from 17,69 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Camera Image Sensor 1/2.8" STARVIS™ CMOS Pixel 2MP Max. Resolution 1920 (H) x 1080 (V) ROM 16 MB RAM 256 MB Electronic Shutter Speed 1/3 s–1/100000 s Scanning System Progressive Min. Illumination Color: 0.005 Lux@F1.6 B/W: 0.0005 L

Warning: Last items in stock!

Add to cart

Delivery in 4-7 working days

Free delivery

14 14 days return policy when purchasing online

Camera
Image Sensor 1/2.8" STARVIS™ CMOS
Pixel 2MP
Max. Resolution 1920 (H) x 1080 (V)
ROM 16 MB
RAM 256 MB
Electronic Shutter Speed 1/3 s–1/100000 s
Scanning System Progressive
Min. Illumination Color: 0.005 Lux@F1.6
B/W: 0.0005 Lux@F1.6
0 Lux@F1.6 (IR on)
Illumination Distance 100 m (328.08 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 6
Lens
Focal Length 4.8 mm–120 mm
Max. Aperture F1.6–F3.5
Field of View H: 58.5°–2.8°; V: 33.2°–1.5°; D: 67.5°–3.2°
Optical Zoom 25x
Focus Control Auto/Semi-Auto/Manual
Close Focus Distance 0.1 m–1.5 m (0.33 ft–4.92 ft)
Iris Control Auto/Manual
DORI Distance Detect Observe Recognize Identify
1655.2 m (5430.45 ft) 656.8 m (2154.86 ft) 331.0 m (1085.96 ft) 165.5 m (542.98 ft)
PTZ
Pan/Tilt Range Pan: 0°–360°Tilt: -15°–+90°; auto flip 180°
Manual Control Speed Pan: 0.1°–200°/s; Tilt: 0.1°–120°/s
Preset Speed Pan: 240°/s; Tilt: 200°/s
Presets 300
Tour 8 (up to 32 presets per tour)
Pattern 5
Scan 5
Speed Adjustment Support
Power-off Memory Support
Idle Motion Preset/Tour/Pattern/Scanning
Protocol DH-SD
Pelco-P/D (auto recognition)
Video
Resolution 1080P (1920 × 1080); 720P (1280 × 720); D1 (704 × 576/704 × 480)
Frame Rate 1080P (25/30 fps), 720P (25/30/50/60 fps)
Day/Night Support
BLC Support
WDR 120 dB
HLC Support
White Balance Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp
Gain Control Auto/Manual
Noise Reduction 2D/3D
Defog Electronic
Digital Zoom 16x
Flip 0°/180°
Privacy Masking Up to 24 areas
CVI Product Output Mode CVI; TVI; AHD; CVBS
Audio
Compression G.711a; G.711Mu
Certification
Certifications CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014
UL: UL60950-1+CAN/CSA C22.2, No.60950-1
Port
Audio Input 1 (LINE IN; bare wire)
Alarm Input 2
Alarm Output 1
Power
Power Supply DC 12V/3A ± 10%
Power Consumption 9.6 W
23.2 W (IR light on, PTZ)
Environment
Operating Temperature –40°C to +70°C (–40°F to +158°F)
Operating Humidity ? 95%RH
Protection IP66; TVS 6000V lightning protection; surge protection
Structure
Dimensions 295.4 mm × ?160.0 mm (11.63" × ?6.30")
Net Weight 3 kg (6.61 lb)
Gross Weight 4.2 kg (9.26 lb)

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 99,99 €
  • Additional warranty (2 years) - 69,99 €
  • Insurance (1 year) - 89,99 €
  • Insurance (2 years) - 159,99 €

Choose a suitable extended warranty and insurance in checkout..

Product codes

EAN
6939554924743
