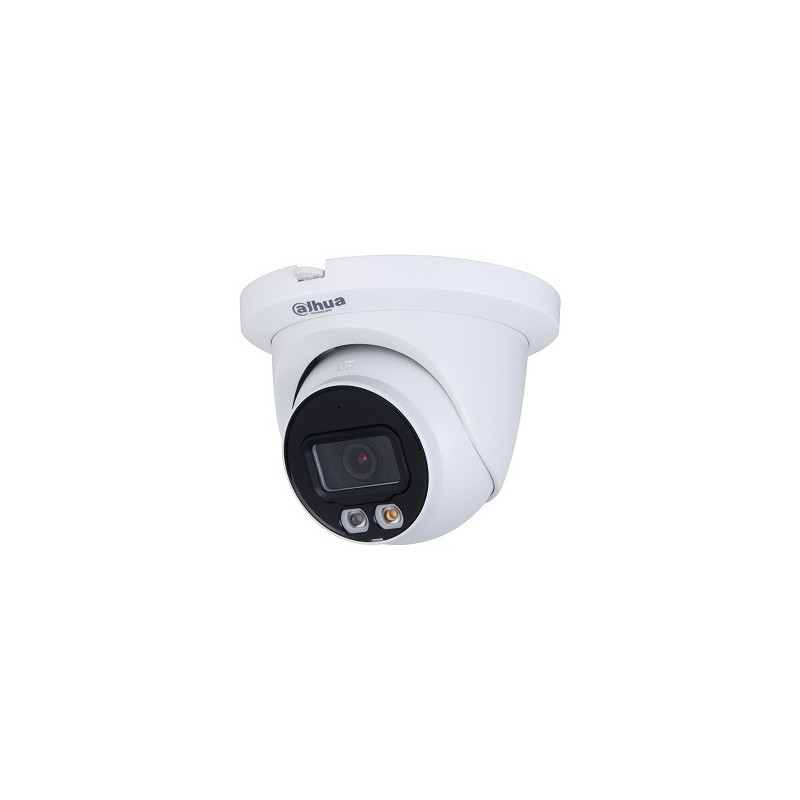

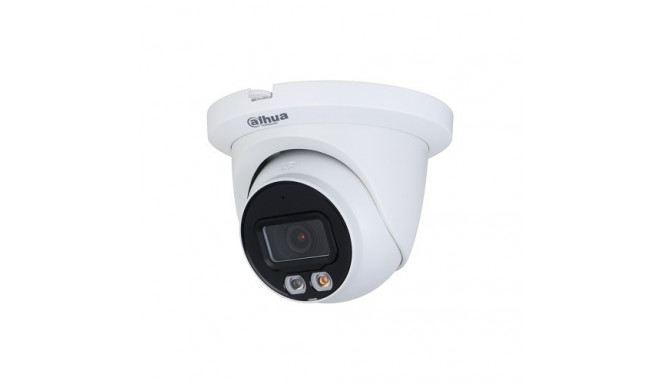

IP network camera 2MP HDW2249TM-S-IL 2.8mm

158,99 €

Monthly payment starting from 5,42 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 4-7 working days

Free delivery

14 14 days return policy when purchasing online

Camera
Image Sensor 1/2.8" CMOS
Max. Resolution 1920 (H) × 1080 (V)
ROM 128 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.002 Lux@F1.6 (Color, 30IRE) 0.0002Lux@F1.6 (B/W, 30IRE) 0 lux (Illuminator on)
S/N Ratio >56 dB
Illumination Distance 30 m (98.43 ft) (IR), 30 m (98.43 ft) (Warm light)
Illuminator On/Off Control Auto; Manual
Illuminator Number 1 (IR LED); 1 (Warm light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm
Max. Aperture F1.6
Field of View 2.8 mm: H: 107°; V: 56°; D: 127°
Iris Control Fixed
Close Focus Distance 2.8 mm: 0.7 m (2.30 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 43.9 m (144.03 ft) 17.5 m (57.41 ft) 8.8 m (28.87 ft) 4.4 m (14.44 ft)
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.264H; H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
Video Frame Rate Main stream: 1920 × 1080@(1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 2 streams
Resolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–6144 kbps;
H.265: 12 kbps–6144 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto;Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; PCM; G.726
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; voltage detection; security exception; SMD
Network
Network Port RJ-45 (10/100 Base-T)
SDK and API Yes
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
Interoperability ONVIF (Profile S/Profile T); CGI; P2P; Milestone
User/Host 6 (Total bandwidth: 36 M)
Storage FTP; SFTP; Micro SD card (support max. 256 GB)
Browser IE
Chrome
Firefox
Management Software DSS;DMSS
Mobile Client iOS;Android
Cyber Security Configuration encryption; Trusted execution; Digest; Security logs; WSSE; Account lockout; syslog; Video encryption; 802.1x; IP/MAC filtering; HTTPS; Trusted upgrade; Trusted boot; Generation and importing of X.509 certification
Certification
Certifications CE-LVD: EN 62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B
Power
Power Supply 12 VDC/PoE (802.3af)
Power Consumption Basic: 1.6 W (12 VDC); 1.9 W (PoE)
Max. (H.265 + intelligence on + WDR + warm light): 3.8 W (12 VDC); 4.4 W (PoE)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ?95%
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Protection IP67
Structure
Casing Material Inner core: Metal;
Cover: Metal;
Decoration ring: Plastic
Product Dimensions 99.1 mm × ?121.9 mm (3.90" × ?4.80")
Net Weight 0.46 kg (1.01 lb)
Gross Weight 0.65 kg (1.43 lb)
