Gigabyte B650 Gaming X AX v2 Mātes plate AMD AM5 / WiFi

181,99 €

Ikmēneša maksājums sākot no 6,20 €

Atvērt nomaksas kalkulatoru

Photopoint nomaksas kalkulators

Lūdzu, pievienojiet preces savam iepirkumu grozam un izvēlieties maksājuma veidu "nomaksa"

Pamatinformācija

Pievienot grozam

Piegāde 3-5 darba dienu laikā

Bezmaksas piegāde

14 14 dienu atgriešanas politika, iepērkoties tiešsaistē

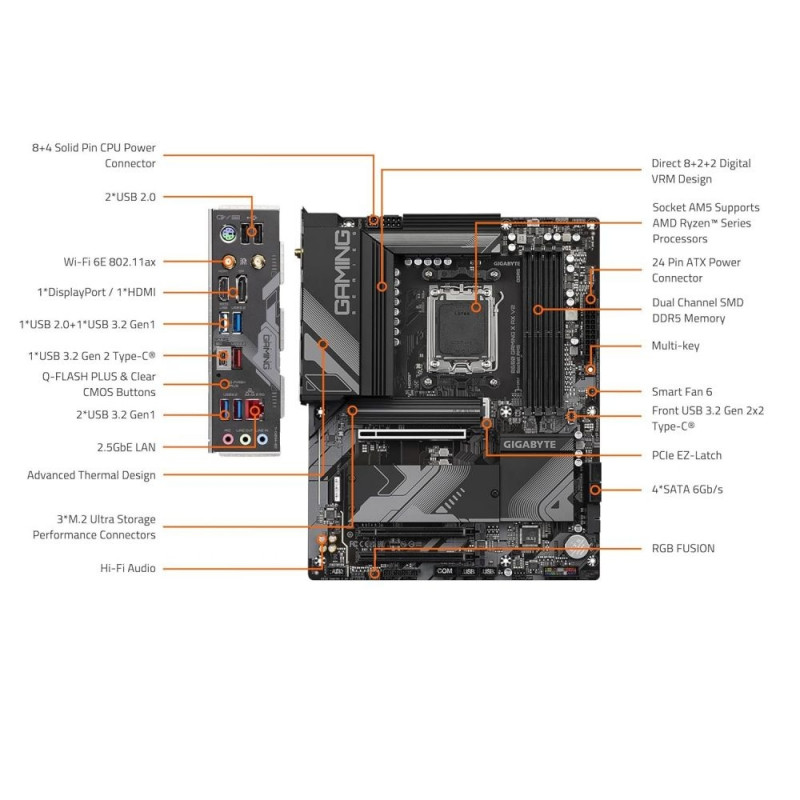

Gigabyte B650 Gaming X AX V2

Supports up to 8th Generation Ryzen CPUs
Supports DDR5 8000+ (OC)

Product specifications

CPU:
AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors/AMD Ryzen™ 8000 Series Processors

Chipset: AMD B650

Memory:
Support for DDR5 5200/4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity)
of system memory Dual channel memory architecture

- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme
- Memory Profile (XMP) memory module
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Onboard graphics:
Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)

Audio
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To
configure 7.1-channel audio, access the audio software for audio settings.

LAN:
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless communication modules:
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
AMD Wi-Fi 6E RZ616 (MT7922A22M) (PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.2
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)

Expansion Slots:
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one
graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)

Storage Interface:
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3,M key, type 25110/22110/2580/2280 SSDs:
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3,M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB  CPU:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 1 x USB 3.2 Gen 1 port on the back panel

CPU+USB 2.0 Hub:
- 3 x USB 2.0/1.1 ports on the back panel

Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the
internal USB header
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through
the internal USB header)
- 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal connectors:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
2 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/
GC-TPM2.0 SPI V2 module only)

Internal connectors:
1 x serial port header
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

Back panel connectors:
 1 x PS/2 keyboard/mouse port
 2 x SMA antenna connectors (2T2R)j
 1 x Q-Flash Plus button
 1 x DisplayPort
 1 x HDMI port
 1 x USB Type-C® port, with USB 3.2 G


Materials Plastic, aluminium
Manufacturer Gigabyte

Izmēri un svars

Bruto svars
1.96 kg
Iepakojuma platums
8 cm
Iepakojuma augstums
27 cm
Iepakojuma garums
33.5 cm

Produktu kodi

EAN
4719331860073
